Ton Bag Filling Machine – Operation Process & Technical Overview

---

1. Ton Bag Filling Machine Operation Process

Step 1: Bagging (Manual)

The operator initiates the process by pressing the "Bagging" button, which signals the hydraulic lifting frame to automatically descend to the optimal bagging position.

Following this, the operator securely attaches the FIBC (Flexible Intermediate Bulk Container) sling to each of the four designated hooks on the jumbo bag filling machine.

Crucially, the bag inlet is clamped securely, creating a dust-tight seal, before the lifting frame smoothly rises to the pre-set packaging height, ensuring a safe and efficient setup.

Step 2: Tare Weighing (Automatic)

Once the bag is in place, the advanced bulk bag filling system automatically performs a tare weighing, precisely peeling off the weight of the empty bag. This ensures an exceptionally precise net-weight measurement for the material being filled.

Step 3: Fast-Feeding (Automatic)

With tare weighing complete, the ton bag packing machine activates its chosen feeding mechanism (which could be gravity, a belt, or a screw conveyor). High-speed filling commences, simultaneously engaging the integrated dust removal system (via a vacuum valve) to significantly minimize airborne particles and maintain a clean environment.

The sophisticated weighing controller meticulously monitors the material weight in real-time. As soon as it reaches the pre-set fast-feed value, the system intelligently transitions to a slower, more controlled feeding phase.

Step 4: Slow Feeding (Automatic)

For ultimate precision filling, the machine seamlessly reduces its speed as the bag approaches the target weight (e.g., 500kg, 1000kg, or 2-ton capacity). This controlled deceleration is vital for accuracy.

Upon achieving exact weight calibration, the feeder instantly stops, and the material gate closes automatically, ensuring each bag is filled to the precise specification with minimal waste.

Step 5: Unloading (Manual)

The final step involves the gentle release of the filled bag. The bag hooks release the sling, and the clamping mechanism opens, carefully freeing the perfectly filled FIBC bag.

The dust removal system delays shutdown, continuing operation for a short period to ensure the surrounding area remains clean. Finally, the operator activates the chain conveyor, which efficiently transports the palletized big bag to a designated area, ready for forklift pickup and further handling.

---

2. Ton Bag Packaging Machine Overview

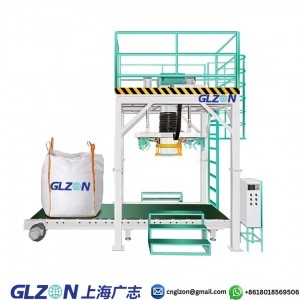

The ton bag filling machine is an advanced, industrial-grade bulk bag packing system engineered for the high-speed, high-accuracy packaging of various materials, including granules, powders, and aggregates. It represents a robust solution for efficient bulk material handling.

Key Features:

• Fully Automated Efficiency: Integrates state-of-the-art weighing, dust removal, and precise fast/slow feeding for unparalleled operational efficiency and reduced labor.

• Versatile Multi-Industry Use: An ideal solution for a broad spectrum of industries, including mining, chemicals, grains, animal feed, and construction materials, demonstrating its adaptability.

• Adjustable Capacity & Precision: Offers customizable filling capacity from 500kg up to 2-ton, consistently achieving an impressive ±0.5% dynamic accuracy for reliable performance.

• Superior Dust-Free Operation: Features a meticulously sealed open-mouth bag filling process combined with advanced negative pressure filtration, ensuring a clean and healthy working environment by minimizing airborne particles.

• Robust & Durable Construction: Built to last with high-quality components, including reliable pneumatic hooks, a powerful hydraulic lift system, and heavy-duty conveyors, guaranteeing exceptional durability and a long service life.

Technical Specifications:

Applications:

• Minerals & Chemicals: Perfect for materials such as fertilizers, resins, silica sand, and other bulk chemical products.

• Food & Grain: Efficiently handles rice, wheat, corn, animal feed, and various other granular food products.

• Building Materials: Ideal for packaging cement, gypsum, aggregates, sand, and other construction-related materials.

---

3. Why Choose Our Bulk Bag Filling Machine?

• Direct from Manufacturer: Benefit from reliable FIBC bag filling systems directly from the source, ensuring quality and comprehensive after-sales support.

• Highly Customizable: Our machines are adaptable to your specific needs, suitable for both open-mouth or spout-type ton bags, providing flexibility for diverse packaging requirements.

• Minimal Maintenance: Designed for longevity and ease of care, featuring stainless steel contact parts that resist corrosion and reduce the need for frequent maintenance, saving you time and operational costs.
