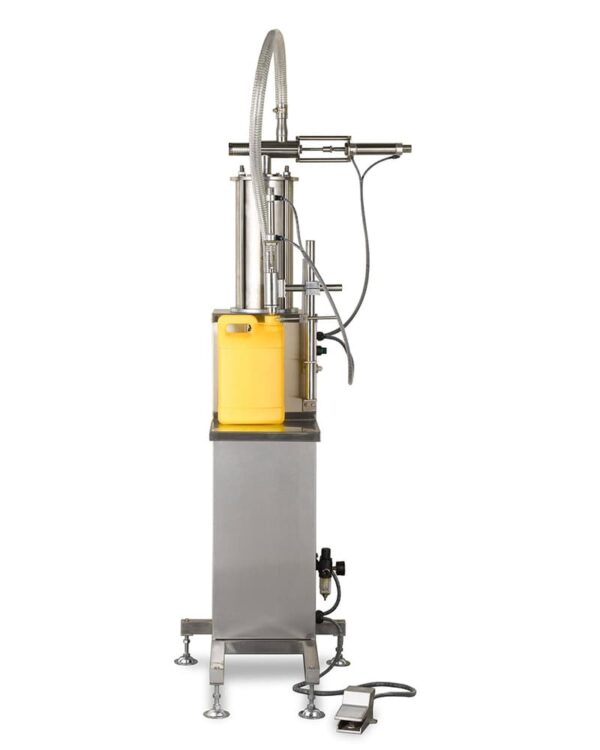

Single Head Volumetric Filler is single Nozzle Piston Volumetric Filler, suitable to fill 1 to 5 Liters Liquid into Container and Bottles. This filling machine designed focus on simplicity on set up.
Modular Precision Filling for Small-Batch Excellence
Shanghai Guangzhi Automation's GZ-SFV200 delivers laboratory-grade volumetric accuracy (±0.5%) for liquids, sauces, oils, and semi-viscous products (50ml–5L). Designed for craft producers, R&D labs, and niche manufacturers, this operator-guided system combines plug-and-play simplicity with industrial reliability—tripling output versus manual filling while reducing product waste to <0.3%.
Servo-Controlled Volumetric Accuracy
Adjustable Piston Cylinders: 5 swappable cylinders cover 50ml–5L fills (±0.5% repeatability).
Viscosity-Adaptive Speed: 3-stage filling (slow-start/fast-fill/drip-cut) for clean fills with oils to thick pastes (≤50,000 cP).
Operator-Optimized Workflow
Foot Pedal Activation: Hands-free triggering while positioning containers.
Quick-Change Tooling: Swap nozzles/cylinders in <60 seconds (no tools).
Hygienic & Durable Build
316L SS/FDA PTFE Contact Path: Full CIP capability; compatible with acids/solvents.
Overload Protection: Auto-shutdown if viscosity exceeds sensor threshold.
Smart Production Insights
Digital Counter: Tracks fills/batch output via OLED display.
I/O Connectivity: RS485 port for future automation integration.
| Parameter | Specification |
|---|---|
| Model | GZ-SFV200-Pro |
| Filling Range | 50 ml – 5,000 ml |
| Accuracy | ±0.5% |
| Speed | 15–30 containers/minute (operator-dependent) |
| Viscosity Range | 1–50,000 cP |
| Container Compatibility | Bottles/jars/tins: ?20–150mm |
| Power | 110V/220V, 50/60Hz, 0.8 kW |
| Air Supply | 0.5 MPa, 0.05 m3/min |
| Hopper Capacity | 10 L (jacketed heating optional) |
| Footprint (L×W×H) | 600 × 500 × 1200 mm |
| Weight | 85 kg |
| Metric | GZ-SFV200 Semi-Auto | Manual Filling |
|---|---|---|
| Consistency | ±0.5% volume deviation | ±3–8% deviation |
| Output (8h shift) | 7,200 fills | 2,400 fills |
| Product Waste | 0.3% | 4–7% |
| Setup Time | 10 minutes | N/A |
Food: Olive oils, vinegar, honey, syrup
Cosmetics: Lotions, serums, creams
Chemicals: Solvents, detergents, adhesives
Pharma: Tinctures, sanitizers (GMP upgrade)
APPLICABLE BARREL TYPE
