Guangzhi’s semi-auto filler handles 200,000 cP paints/chemicals at ±0.25% accuracy. ATEX-certified, 80% labor reduction & <0.1% waste. Free trial!
Precision Gravimetric Filling for Paints, Latex & Chemicals (10–50kg Containers)

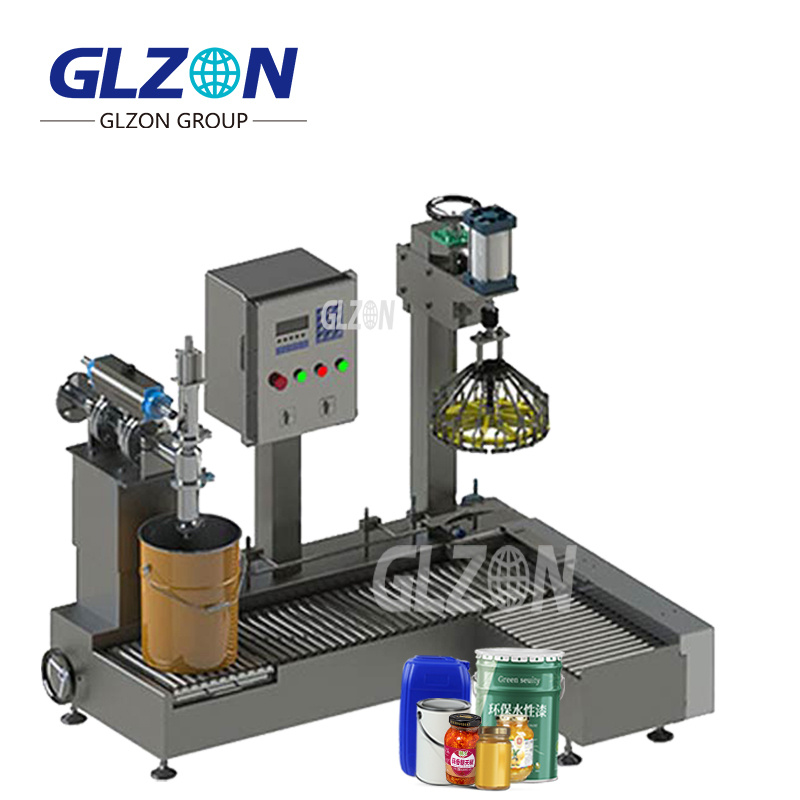

Shanghai Guangzhi Automation’s GZ-SPF1100 delivers ±0.25% weight accuracy for filling viscous liquids (1–200,000 cP) into pails, drums, or jerrycans. Designed for paint manufacturers, chemical processors, and industrial coating suppliers, this ATEX/CE-certified system slashes spillage by 98%, reduces labor costs by 80%, and ensures batch consistency – even for shear-sensitive latex and solvent-based formulations.
Intelligent Gravimetric Control
High-Resolution Load Cells (0.01%): Auto-compensate for density shifts during filling (±0.25% accuracy).
Viscosity-Adaptive Pumping: Servo-driven gear pumps handle latex (5,000 cP) to epoxy putties (200,000 cP).
Operator-Safe Efficiency
Height-Adjustable Fill Head (600–1,200mm): Accommodates palletized containers.
Foot Pedal Activation: Hands-free operation + emergency stop (<0.5s response).
Hazardous Material Compliance
ATEX Zone 1/21 Option: Explosion-proof electronics for solvents (flash point <23°C).
StaticDissipate? System: Conductive nozzles (<10? Ω) + grounded clamps.
Zero-Waste Architecture
Drip-Free Shutoff: Vacuum suck-back reduces residue to <0.1%.
Overfill Safeguard: Auto-stop if weight deviation exceeds ±0.5%.
| Parameter | Specification |
|---|---|
| Model | GZ-SPF1100-Pro |
| Capacity | 10–50 kg (customizable to 60 kg) |
| Accuracy | ±0.25% (gravimetric) |
| Viscosity Range | 1–200,000 cP |
| Filling Rate | 12–18 containers/hour |
| Material Contact | 316L SS, PTFE, Halar? (pH 0.5–14 resistant) |
| Power | 380V/50Hz, 4.5 kW |
| Air Supply | 0.6 MPa, 0.3 m3/min |
| Container Types | Pails, drums, jerrycans (?250–500mm) |
| Footprint (L×W×H) | 2000 × 1100 × 2300 mm |
| Compliance | ATEX, CE, REACH, OSHA 1910.106 |
| Metric | GZ-SPF1100 Semi-Auto | Manual Process |
|---|---|---|
| Hourly Output | 18 containers | 3–4 containers |
| Labor | 1 operator | 3 operators |
| Material Waste | <0.1% | 4–15% |
| Spill Events | 0 | 3–7 daily |
| ROI Period | 6–9 months | N/A |
Paints/Latex: Nitrogen purge prevents skinning; anti-foam pulsed filling.
Solvent-Based Chemicals: Vapor recovery hood (95% VOC capture).
Epoxy Resins: Heated hopper (40–80°C) with dual-component metering option.
Acidic Liquids: Halar?-coated wetted parts for pH 0.5 resistance.
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
