Impeller Valve Bag Filler: Premium Solution for Efficient Bulk Material Packaging
In the bulk material handling industry, precision, efficiency, and reliability are non-negotiable. The Impeller Valve Bag Filler stands out as a high-performance packaging equipment designed to streamline the filling process of powdered, granular, and fine materials. Whether for cement, lime, fertilizer, plastic pellets, or food additives, this advanced machine delivers consistent results, reduces waste, and boosts productivity—making it an indispensable asset for manufacturing, construction, and chemical sectors.
What is an Impeller Valve Bag Filler?

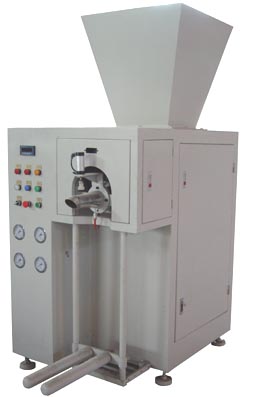

An Impeller Valve Bag Filler is a specialized packaging machine that uses a rotating impeller to meter and discharge bulk materials into valve bags. Unlike traditional filling equipment, its unique impeller design ensures controlled material flow, preventing dust emission and ensuring accurate filling weights. The valve bag connection system provides a secure seal during filling, minimizing product loss and maintaining a clean working environment.
Engineered for versatility, this filler accommodates various valve bag types, including paper, polypropylene, and laminated bags, and adapts to a wide range of material densities. From free-flowing to moderately cohesive materials, the impeller mechanism adjusts seamlessly to meet specific packaging requirements.
Conclusion
Parameter Category | Standard Specifications | Optional Configurations |
|---|
Filling Capacity | 25-50 kg/bag (adjustable); 20-40 bags/min (varies by material flowability) | 10-25 kg/bag or 50-100 kg/bag; up to 50 bags/min for free-flowing materials |
Filling Accuracy | ±0.5% (for free-flowing materials); ±1% (for moderately cohesive materials) | ±0.3% high-precision version (for food/chemical additives) |
Impeller Configuration | Wear-resistant steel impeller; diameter 150-200 mm; variable speed control (0-500 rpm) | Food-grade stainless steel impeller; ceramic-coated impeller (for abrasive materials) |
Bag Compatibility | Valve bags (paper, polypropylene, laminated); bag size 400×600 mm to 500×800 mm | Custom bag size adapters; multi-bag type compatibility (valve + open-mouth) |
Power Supply | 380V/50Hz/3Phase; 2.2-5.5 kW (main motor) | 220V/60Hz/1Phase; 7.5 kW high-power motor (for heavy-duty use) |
Dust Collection | Integrated pulse dust collector; air volume 800-1200 m3/h | HEPA filter dust collector; centralized dust collection system integration |
Dimensions & Weight | 1200×800×2200 mm (L×W×H); net weight 800-1200 kg | Customized dimensions for limited space; 1500-2000 kg heavy-duty frame |
Control System | PLC touchscreen control; weight display (0.01 kg precision); automatic fault alarm | Industrial IoT (IIoT) integration; remote monitoring & data logging |
Invest in an Impeller Valve Bag Filler today and experience the difference in your bulk material packaging process.
Key Features of Impeller Valve Bag Filler
The Impeller Valve Bag Filler is equipped with cutting-edge features that set it apart from standard filling machines. Here are the core advantages that drive its popularity in industrial settings:
Precision Filling Control: The rotating impeller with adjustable speed allows for precise metering of materials, ensuring each bag meets exact weight specifications (typically ±0.5% accuracy). This eliminates overfilling and underfilling, reducing material waste and compliance risks.
Dust-Free Operation: Integrated dust collection systems and sealed valve bag connections prevent dust leakage, protecting workers’ health and complying with industrial safety standards (e.g., OSHA, CE). This is critical for handling hazardous or fine materials like cement and talc.
High Efficiency: With filling speeds of 20-40 bags per minute (depending on material and bag size), the impeller valve bag filler outperforms manual and semi-automatic alternatives. Its automated operation reduces labor costs and increases overall production throughput.
Durable Construction: Built with heavy-duty steel frames, wear-resistant impellers, and corrosion-resistant components, the machine withstands harsh industrial environments and heavy-duty use. This ensures long service life and minimal maintenance downtime.
User-Friendly Interface: Equipped with a touchscreen control panel, operators can easily adjust filling parameters, monitor performance, and troubleshoot issues. The intuitive design reduces training time and operational errors.
Customization Options: Manufacturers offer tailored solutions, including automatic bag placement, sewing/heat-sealing systems, and integration with conveyor lines for fully automated packaging workflows. It can also be adapted for different bag sizes (25kg, 50kg, etc.) and material characteristics.
How Does an Impeller Valve Bag Filler Work?
The operation of an Impeller Valve Bag Filler follows a streamlined, four-step process to ensure efficient and accurate packaging:
Bag Loading: An operator or automated system places a valve bag onto the filler’s spout. The spout securely attaches to the bag’s valve, creating a sealed connection to prevent dust escape.
Material Feeding: Bulk materials are transferred from a hopper to the impeller chamber. The rotating impeller (driven by a variable-speed motor) agitates and pushes the material through the spout into the bag.
Weight Monitoring: A load cell integrated into the machine continuously measures the bag’s weight. Once the target weight is reached, the impeller slows down or stops, and the spout retracts from the bag valve.
Bag Sealing & Discharge: The filled bag is automatically sealed (via sewing, heat sealing, or adhesive) and discharged onto a conveyor for further processing, such as palletizing or storage.
Applications of Impeller Valve Bag Filler
The versatility of the Impeller Valve Bag Filler makes it suitable for a wide range of industries and materials. Key applications include:
Construction Materials: Cement, lime, gypsum, sand, concrete mix, and masonry products.
Agriculture & Fertilizers: Granular fertilizers, soil amendments, seed, and animal feed.
Chemicals: Plastic pellets, resin, talc, carbon black, and industrial chemicals (non-hazardous and hazardous).
Food & Beverage: Flour, sugar, salt, starch, and powdered food additives (with food-grade materials).
Minerals: Coal dust, iron ore fines, limestone, and other mineral powders.
Why Choose an Impeller Valve Bag Filler for Your Business?
Investing in an Impeller Valve Bag Filler offers tangible benefits that impact your bottom line and operational efficiency:
Cost Savings: Reduced material waste, lower labor costs, and minimal maintenance expenses translate to long-term savings. The machine’s high efficiency also increases production capacity without additional resource investment.
Compliance & Safety: Dust-free operation ensures compliance with workplace safety regulations, reducing the risk of fines and worker health issues. Accurate filling meets quality control standards and customer expectations.
Scalability: Customizable features and high throughput allow the machine to adapt to growing business needs, whether expanding product lines or increasing production volume.
Reliability: Heavy-duty construction and advanced technology minimize downtime, ensuring consistent performance even in 24/7 industrial operations.
Choosing the Right Impeller Valve Bag Filler
When selecting an Impeller Valve Bag Filler, consider the following factors to match your specific requirements:
Material Characteristics: Density, flowability, and abrasiveness of the material will determine the impeller design and material of construction.
Production Volume: Choose a machine with the appropriate filling speed to match your daily/ hourly production targets.
Bag Type & Size: Ensure the filler is compatible with your preferred valve bag material and size (25kg, 50kg, etc.).
Automation Level: Decide between semi-automatic (manual bag loading) or fully automatic (integrated with conveyors and sealing systems) models based on labor availability and efficiency goals.
After-Sales Support: Select a manufacturer that offers installation, training, maintenance, and spare parts services to maximize machine uptime.
Conclusion
The Impeller Valve Bag Filler is a game-changer for bulk material packaging, combining precision, efficiency, and safety in one robust machine. Whether you’re in construction, agriculture, chemicals, or food processing, this equipment optimizes your packaging workflow, reduces costs, and ensures consistent product quality. By choosing the right model tailored to your needs, you can elevate your operational efficiency and stay ahead in a competitive industry.
Invest in an Impeller Valve Bag Filler today and experience the difference in your bulk material packaging process.
