Precision Automation for Open-Mouth Bags

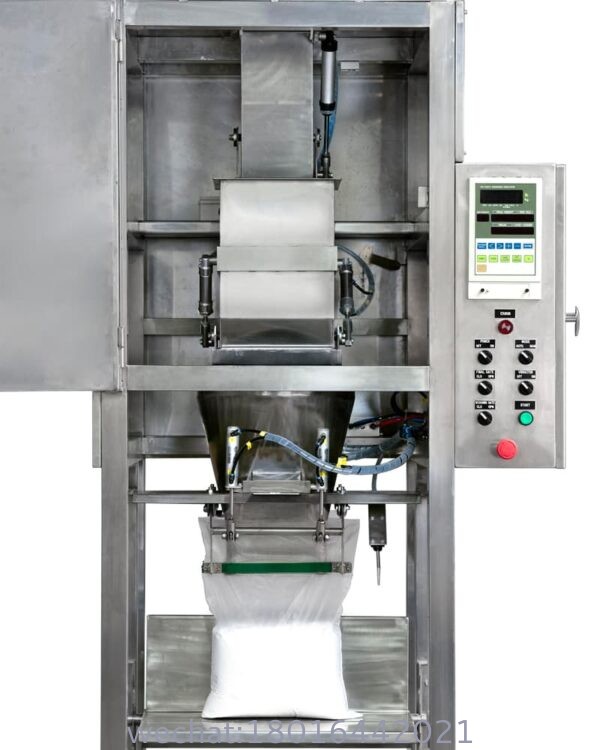

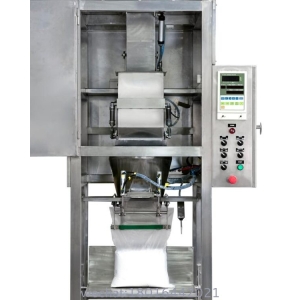

The OBF-2000 revolutionizes open-mouth bag handling with integrated filling, weighing, and sealing for powders, granules, and flakes. Designed for food, chemicals, and building materials, this system achieves ±0.2% accuracy at 12-15 bags/minute while eliminating spillage with its patented bag-sealing technology.
| Feature | Competitor Gap |
|---|---|
| Auto Bag Opening | Vacuum suction + IR sensor alignment (vs. manual positioning) |
| Dust-Free Sealing | HEPA-filtered air purge during filling (vs. open-top dust emission) |
| Multi-Seal Options | Sewing, heat-seal, or adhesive tape (single-platform flexibility) |
| Smart Jog Function | AI adjusts vibration for powder settling (eliminates 99% bag topples) |
| Parameter | Specification |
|---|---|
| Bag Size | 10–50 kg (5–25 kg/min fill rate) |
| Accuracy | ±0.2% (load cell) / ±0.5% (auger filler) |
| Bag Types | Woven PP, paper, laminated (L: 400–800 mm) |
| Throughput | 720–900 bags/hour (50kg max) |
| Power | 380V/50Hz, 8.5 kW |
| Air Supply | 0.6 MPa @ 45 L/min (oil-free) |
| Sealing Speed | ≤ 3 sec/bag (servo-driven) |
| Material Contact | 304 stainless steel & food-grade PTFE |
Bag Palletizer: Automatic bag feeding & orientation
Filling Head: Dual-stage auger with anti-bridging agitator
Checkweigher: Reject deviation >±0.5%
Dust Hood: ISO 8573-1 Class 1 compliant
Sealing Station: Choice of stitcher/heat sealer
Discharge Conveyor: Soft-drop transfer to palletizer
| Metric | OBF-2000 | Manual Operation |
|---|---|---|
| Bags/Hour | 900 | 120 |
| Labor | 1 operator | 3 workers |
| Spillage Loss | <0.1% | 1.8–3.5% |
| Bag Damage | 0.05% | 2.1% |
Food: Flour, sugar, starch, powdered milk
Chemicals: Polymer pellets, catalyst beads
Construction: Tile grout, dry mortar
Agriculture: Fertilizer, animal feed
? Zero-Contamination Design: IP69K washdown-ready
? Bag Agnostic: Handles gusseted/stitchless bags
? 5-Minute Changeover: Tool-free format adjustment
? IoT-Ready: OEE dashboards + predictive maintenance
