Explosion-proof IBC filler for 200-1000L lubricants. ±0.1% gravimetric accuracy, nitrogen inerting & static control. ATEX Zone 1 certified. 15 fills/hour.

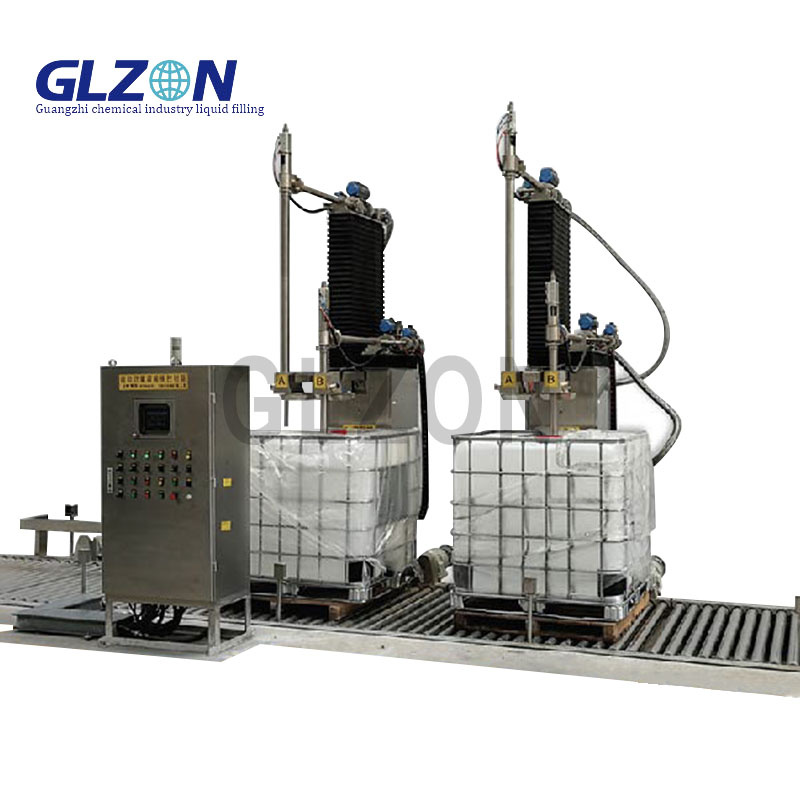

Shanghai Guangzhi Automation’s ATEX IBC Filler delivers ±0.1% gravimetric accuracy for 200-1000L lubricants (ISO VG 32-680) in Zone 1 hazardous areas. Engineered with Ex d IIC T4 certification, nitrogen inerting (O?<0.5%), and multi-point static dissipation, it achieves 15 fills/hour while eliminating electrostatic ignition risks per NFPA 77 and IEC 60079 standards.
1. Explosion-Proof Architecture
| Component | ATEX Specification |
|---|---|
| Load Cells | Ex ia IIC T4 intrinsically safe |
| Filling Head | Ex d pressurized enclosure |
| Control Panel | Ex p purged (IP66) |
| Static Dissipation | Conductive hoses (<10? Ω) + auto-grounding |
2. High-Viscosity Optimization
Heated Flow Path:
Jacketed pipes & nozzles (40-80°C ±2°C)
Prevents wax crystallization in cold starts
Smart Flow Control:
Servo-driven piston (50-500,000 cP)
Vacuum degassing (95% air removal)
3. Zero-Waste Design
Drip-Free Retraction:
PTFE-coated needle valves + air knife cutoff
Residual oil ≤10ml per fill
Quick-Connect IBC Adapter:
Laser-guided flange alignment (±1mm)
Auto-sealing in 3s
| Parameter | Standard Model | Arctic Model |
|---|---|---|
| Filling Range | 200-1000L (±0.1%) | 200-1000L (±0.15%) |
| Viscosity Range | 32-680 cSt (ISO VG) | 68-1500 cSt |
| Flow Rate | 100-400 L/min | 80-300 L/min |
| Heating Capacity | 8kW (40-80°C) | 12kW (60-100°C) |
| N? Consumption | 25 L/min @ 4bar | 30 L/min @ 5bar |
| Throughput | 15 fills/hour | 12 fills/hour |
| Power | 380V/50Hz, 9.5kW | 480V/60Hz, 14kW |
| Safety Certification | ATEX Zone 1 (Ex d IIC T4) | ATEX Zone 1 + SIL2 |
| Footprint (L×W×H) | 3800×2500×3200mm | 4000×2500×3400mm |
| Oil Type | Specialized Feature |
|---|---|
| Transformer Oil | Dry air purge (dew point -40°C) |
| Engine Lubricants | Anti-foam pulsed filling |
| Gear Oils (EP) | Additive injection port |
| Synthetic Esters | Hastelloy C22 wetted parts |
10" ATEX HMI (Ex de IIC T6)
Real-time dashboards:
O? concentration (ppm)
Static charge (kV)
Fill curve analytics
Predictive alerts:
Seal integrity monitoring
Heater efficiency degradation
Triple Safety Interlocks (SIL2)
Auto-shutdown if:
O? >1% in vapor space
Grounding resistance >10Ω
Flow turbulence >20% threshold
Emergency nitrogen purge
German Lubricant Blender Case:
Eliminated electrostatic incidents in Zone 1 areas
Achieved ±0.08% fill accuracy for ISO VG 460
ROI in 13 months via reduced giveaway
Certifications:
ATEX 2014/34/EU (Zone 1)
IECEx IEC 60079-0
API Standard 675
OIML R60 Class 0.5
Critical Upgrades:
| Module | Function |
|---|---|
| Inline Viscometer | Real-time viscosity (±2 cSt) |
| Robotic Lid Handler | Auto-torque sealing (5-50 N·m) |
| Blockchain Batch Log | Immutable API/REACH compliance records |
| AR Emergency Drill | HoloLens-based hazard training |
24/7 Hazardous Response Team:
Remote diagnostics via intrinsically safe IIoT
Critical Spares Dispatch ≤48h:
Ex-proof Coriolis meters
Heating cartridges
Kalrez sealing kits
Lubricant compatibility validation

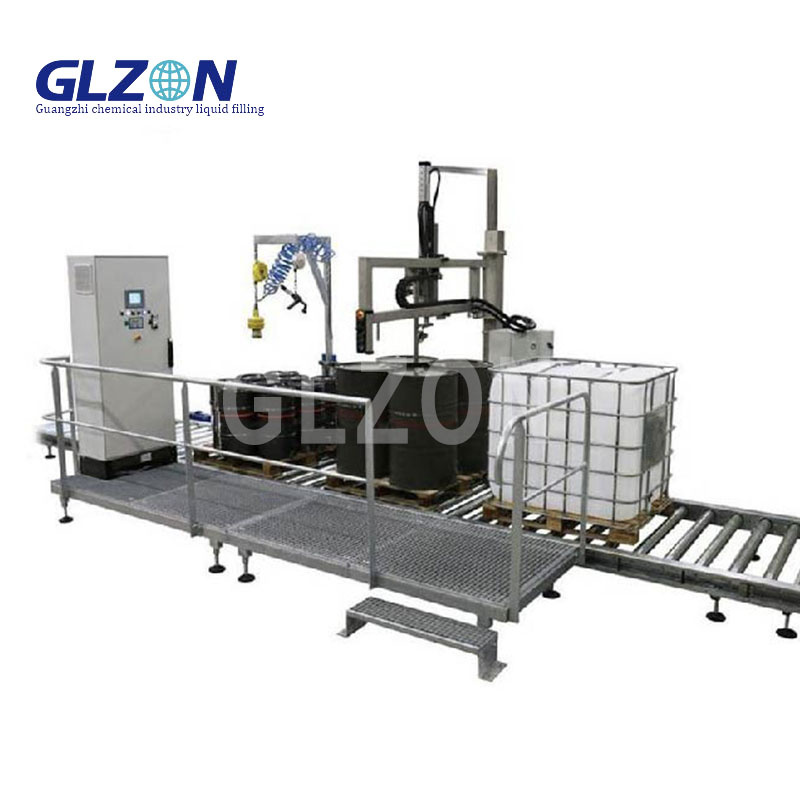

APPLICABLE BARREL TYPE
