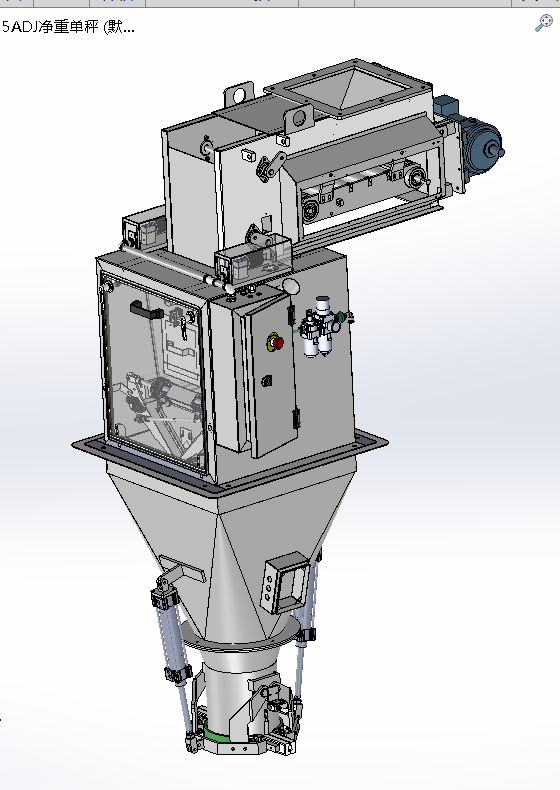

Belt Feeding Weighing Bagging Machine - Complete English IntroductionBelt Feeding Weighing Bagging Machine – High Precision Automatic Packaging SolutionOur BF-WB Series belt feeding weighing bagging m
| Category | Parameters |
|---|---|
| Basic Model | BF-WB Series (BF-WB50, BF-WB100, etc.) |
| Feeding System | - Feeding method: Belt conveyor feeding- Belt width: 200–600 mm (customizable)- Conveyor speed: 0.5–3 m/s (stepless speed regulation) |
| Weighing System | - Weighing range: 5–50 kg / 10–100 kg (dual-range optional)- Accuracy: ±0.2% FS (full scale)- Weighing sensor: Load cell (stainless steel, anti-corrosion)- Control mode: PLC + touch screen, automatic calibration |
| Bagging System | - Bag type: Woven bag, PP bag, paper bag (20–120 cm bag length)- Bagging speed: 800–1200 bags/hour (depending on material & weight)- Sealing method: Sewing sealing / heat sealing (optional)- Bag clamping: Pneumatic automatic clamping |
| Material Compatibility | Granular materials (grain, fertilizer, feed, plastic particles), powdery materials (with dust removal device) |
| Structure & Material | - Frame: Carbon steel (painted) / stainless steel 304- Protection level: IP54 (dust-proof, splash-proof) |
| Power & Dimension | - Power supply: 380V/50Hz 3-phase (customizable for 220V/60Hz)- Power: 2.2–7.5 kW- Overall dimension: 2800×1200×3200 mm (L×W×H, customizable)- Net weight: 800–1500 kg |
| Optional Functions | Dust collector, metal detector, automatic bag stacking machine, data printing system, remote monitoring |
Fertilizer and agricultural products
Chemical powders and granules
Animal feed and pet food
Plastic resins and pellets
Construction materials
