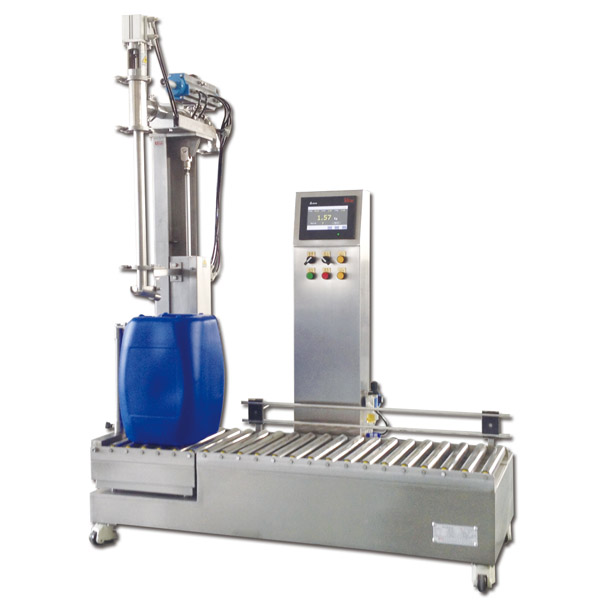

Explosion-Proof Filling Machine, Quantitative Filling Equipment for Flammable Chemicals, Resins, Oils & Paints

Product Application

• Chemical Industry: Quantitative filling of non-foaming, flammable explosive materials (resins, additives, industrial oils, paints, chemical solvents);

• Coating Industry: Filling flammable paints and additives, with anti-splash design to keep barrels clean and operation safe;

• Resin Processing Industry: Quantitative filling of non-foaming resins, ensuring accuracy and reducing material waste;

• Other Fields: Filling non-foaming, easily explosive liquids requiring explosion-proof protection, adapting to dangerous chemical production standards.

Basic Technical Parameters

System Core Features

• Full Explosion-Proof Design: EXdiaIIBT4 rating, preventing fires and explosions in flammable and explosive environments;

• Stable PLC Control: PLC programmable controller, ensuring stable operation, long service life and low failure rate;

• Easy-Maintain Filling Gun: Proprietary design, quick manual disassembly for convenient maintenance and cleaning;

• Corrosion-Resistant Sealing: PTFE sealing system, solvent/acid/alkali resistant with long service life;

• Anti-Splash Insertion Filling: Insertion-type gun prevents material splashing and reduces waste;

• Dual-Stage Automatic Filling: Improves filling accuracy for different liquid sizes;

• Intelligent Protection: No filling if the gun is not inserted into the barrel, avoiding misoperation;

• Automatic Gun Lifting: Lifts automatically after filling, waiting for the next cycle;

• Adjustable Gun Height: Manual adjustment for different barrel heights, strong versatility;

• Empty Barrel Detection: Avoids invalid filling and material waste;

• Emergency Manual Operation: Manual buttons for emergencies to ensure production continuity;

• Dual-Window Display: Shows target quantity, filling volume, container count, date and time clearly;

• Parameter Storage: Stores 30 sets of filling parameters for quick recall;

• Anti-Interference Calibration: Digital calibration resists vibration, ensuring accuracy in complex environments;

• Self-Diagnosis: Timely fault detection and solution;

• Emergency Stop: Cancels filling immediately in emergencies, protecting personnel and equipment;

• One-Click Operation: Start—Drumhead Descends—Automatic Tare—Filling—Drum Lifting, simple and efficient;

• Defoaming Function & Long Filling Valve: Equipped with defoaming function and long filling valve for better performance.

Filling Workflow

1. Manual container alignment with the filling gun;

2. Press [Start] to activate the machine;

3. Filling gun automatically inserts into the container;

4. Automatic tare calculation for empty barrels;

5. Automatic dual-speed filling (fast for efficiency, slow for precision);

6. Gun lifts automatically after reaching target filling volume;

7. Error detection and display for abnormalities;

8. Manual unloading and capping to complete the process.
