Automatic Ketchup Sauce Bottling Filling and Sealing Packing Line

Shanghai Guangzhi’s turnkey ketchup line fills/seals 500-3000ml bottles at 120 bpm with ±0.5% accuracy. Features anti-settling filling, steam sterilization & leak-proof capping.

  • Brand: glzon
  • Model: GZM_10L

Integrated Solution: End-to-End Ketchup Packaging

Shanghai Guangzhi Automation delivers a fully synchronized line for bottling, filling, sealing, labeling, and palletizing ketchup sauces (10-50% pulp content). Engineered for PET/glass bottles (500-3000ml), this GMP-compliant system combines 85°C hot-fill sterilization, anti-pulp settling technology, and robotic handling to achieve 120 bottles/min with zero cross-contamination.

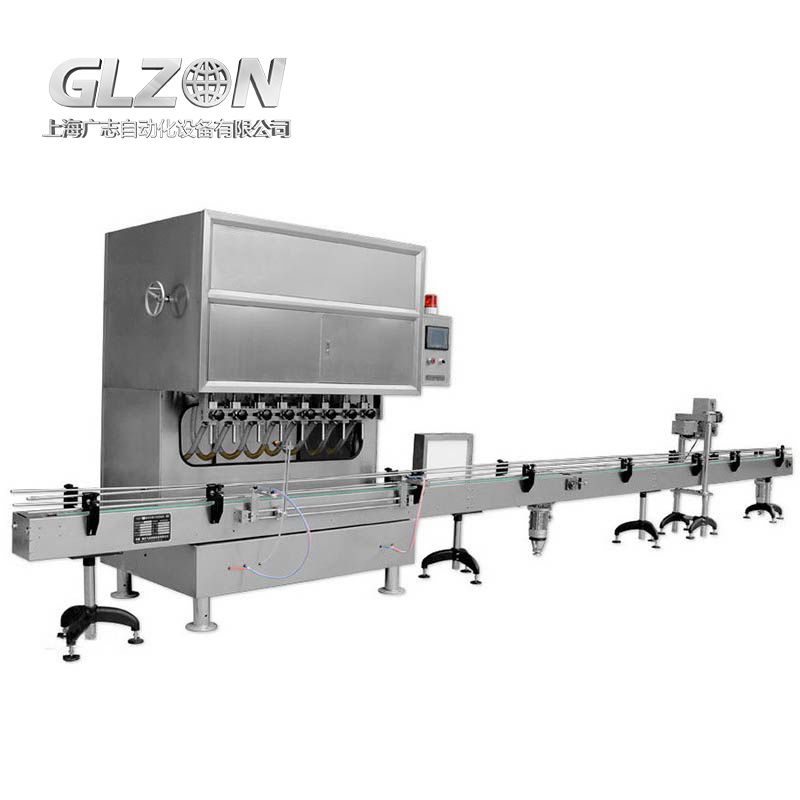

Ketchup Bottling Machine


Core Line Components & Innovations

1. Precision Hot-Fill Station

  • Pulp Management System: Agitating hopper with helical ribbon mixer prevents tomato pulp sedimentation (±1% density variance)

  • ±0.5% Volumetric Accuracy: Corrosion-resistant ceramic pistons handle 15,000 cP viscosity at 85±2°C

  • Nitrogen Overpressure: Maintains 0.3-0.5 bar during filling to prevent bubble formation

2. Hermetic Sealing System

ProcessTechnologyPerformance
Steam SterilizationSaturated steam tunnel6-log pathogen reduction
Vacuum CappingRotary chuck torque control5-18 in-lb seal integrity
Cooling TunnelProgressive temperature zonesPrevents bottle distortion

3. In-Line Quality Control

  • AI Vision Inspection: Checks fill level (±2mm), cap alignment, label position

  • Pressure Decay Tester: Detects microleaks ≥0.05cc/min

  • Weight Rejector: ±1g accuracy with automated diverter

4. Palletizing Robotics

  • Delta robot stacks 25kg cases at 18 cycles/min

  • Integrated stretch wrapping for humidity protection


Technical Specifications

  • Throughput: 120 bottles/minute (1L PET bottle)

  • Bottle Compatibility: Round/square PET/glass (?50-120mm × H150-320mm)

  • Cap Types: 38-53mm continuous thread, press-on lug

  • Filling Temp: 82-88°C (adjustable)

  • Cooling Rate: 85°C→45°C in 8 min (water spray + forced air)

  • Power: 380V/50Hz, 28kW

  • Line Footprint: 16m × 3.2m × 3.5m (L×W×H)

  • OEE: ≥93% (validated @ 24/7 operation)


Ketchup-Specific Engineering

Pulp Handling Breakthroughs

  • Anti-Jam Nozzles: 8mm ID ceramic-coated tips resist pulp clogging

  • Particle Size Tolerance: Up to 8mm tomato solids

  • Acid Resistance: Hastelloy C276 components withstand pH 3.3-3.9

HACCP-Critical Design

  • CIP/SIP Integration: 4-channel spray balls (flow ≥1.5m/s)

  • Drainable Frame: 3° slope with no fluid entrapment zones

  • Material Traceability: Laser-etched batch codes on all product-contact parts


Operational Impact

Heinz-Style Plant Retrofit (Vietnam)

  • Challenge: 8% underfill in 700ml bottles due to pulp settling

  • Solution: Helical mixer + viscosity-compensated pistons

  • Results:

    • 99.4% fill accuracy

    • 40% energy saving via heat recovery cooling

    • ROI in 14 months


Compliance & Upgrades

Global Certifications

  • FDA 21 CFR 114 (Low-Acid Canned Foods)

  • EU Regulation No 1935/2004

  • ISO 22000 & HACCP

  • 3-A Symbol-08 (Option)

Critical Options

UpgradeFunction
Aseptic Cold Fill ModuleFor sensitive ingredients
X-Ray DetectionForeign object scan (≥2mm glass/metal)
Blockchain TraceabilityEnd-to-end batch tracking via IBM Food Trust
Solar Thermal SystemCuts steam generation cost 65%

Support Commitment

  • 24/7 remote diagnostics with predictive maintenance alerts

  • Sanitary spare kit (gaskets/pistons) global delivery ≤72h
