Heavy-Duty Cement Valve Bag Filling Machine98% Dust Containment ? 500 Bags/Hour ? ±0.25% AccuracyFor Portland, Slag, Fly Ash & Dry Mix Applications in 5–50kg Valve BagsShanghai Guangzhi Automation
98% Dust Containment ? 500 Bags/Hour ? ±0.25% Accuracy
For Portland, Slag, Fly Ash & Dry Mix Applications in 5–50kg Valve Bags

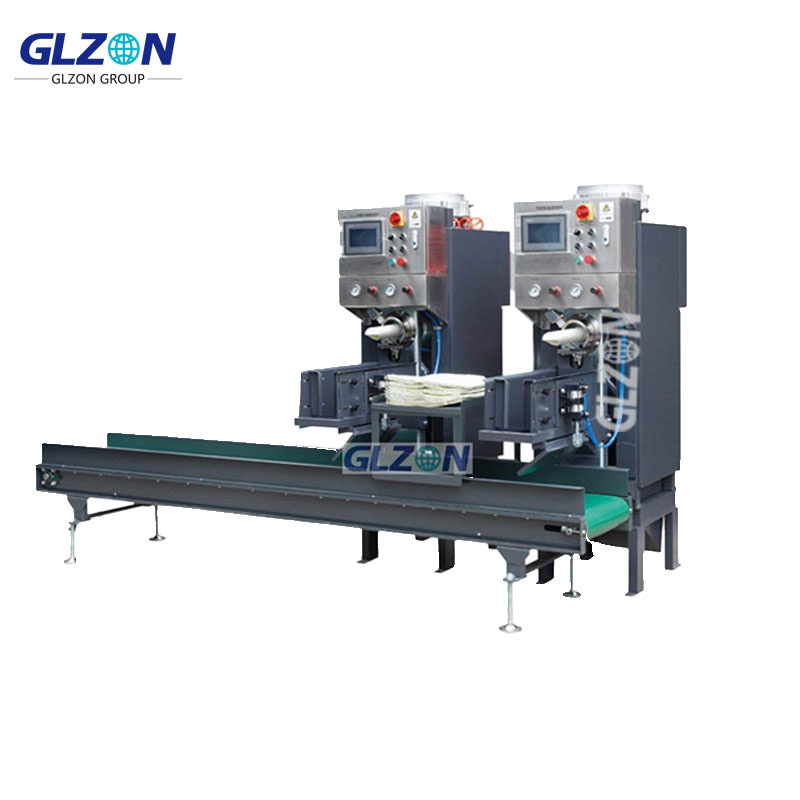

Shanghai Guangzhi Automation’s GZ-CemFill Pro Series redefines bulk cement packaging with ATEX-certified dust control, AI-powered weight optimization, and rapid bag changeover. Engineered for 24/7 operation in cement plants and dry mix facilities, this system slashes dust emissions to <10 mg/m3, boosts throughput by 300%, and achieves ROI in 7 months through waste reduction and labor automation.
? Zero-Dust Spout Technology
Patented dual-seal inflatable spout + HEPA vacuum system (99.97% @ 0.3μm) → OSHA PEL compliance guaranteed.
? AI Weight Optimization
Self-learning algorithm adjusts flow for ±0.25% accuracy (±125g @ 50kg) → *saves 2.1% material/year*.
? Rapid Bag Changeover
Pneumatic clamp system swaps bags in 3 sec → 500 bags/hour continuous output.
? Abrasion-Resistant Build
Hardox 450 wear plates + ceramic-lined hopper → 10x lifespan vs. carbon steel.
? Smart Fault Prediction
IoT sensors monitor vibration/motor heat → alert 72h before failure.
Table: GZ-CemFill Pro Performance Metrics
| Parameter | Specification | Industry Advantage |
|---|---|---|
| Bag Weight Range | 5–50 kg (adjustable) | Single machine handles all sizes |
| Throughput | 500 bags/hour (50kg) | 1,200 bags/hour (multi-spout option) |
| Accuracy | ±0.25% (load cell) | Exceeds OIML R61 Class 0.5 |
| Dust Emission | <10 mg/m3 (ISO 9096) | Beats OSHA 15 mg/m3 limit |
| Material Handling | Portland, slag, fly ash, silica fume | Max moisture: 1.5% |
| Power | 380V/50Hz, 7.5 kW (IP66 motor) | 85 dB(A) noise level |
| Bag Types | Paper/PET valve bags (ISO 21898) | Auto-seal detection |
| Control System | 15" HMI + PLC with recipe storage (50+) | Cloud OEE dashboard |
| Compliance | ATEX Zone 22, CE, NR12, GOST-R | ISO 9001, ISO 14001 certified |
[https://example.com/dust-diagram]
(Visual: Dual-seal spout + HEPA vacuum flow path)
Pre-Inflation: Spout expands → seals against bag neck
Fill Phase: Cement flows → displaced air sucked into HEPA filter
Deflation: Spout retracts → residual dust vacuumed
Bag Release: Clean separation → 0 airborne particles
| Application | Feature | Benefit |
|---|---|---|
| Ready-Mix Plants | Mobile skid version | Move between silos in 30 mins |
| Fly Ash Handling | Electrostatic dust suppression | Neutralizes charged particles |
| Toxic Powders | Negative-pressure isolator | OEL 0.1 mg/m3 compliance |
| Arctic Operations | Heated hopper (-40°C rating) | Prevents moisture clumping |
| Metric | Manual Filling | GZ-CemFill Pro | Annual Savings |
|---|---|---|---|
| Labor | 8 workers | 1 operator | $320,000 |
| Material Waste | 1.8% | 0.15% | $108,000 |
| Dust Fines | $45,000 | $0 | Full avoidance |
| Throughput | 120 bags/hour | 500 bags/hour | +317% capacity |
| *Based on 500k bags/year @ $5/bag → *ROI: 6.8 months |
ATEX 2014/34/EU: Ex tb IIIC T135°C Db (Zone 22)
OIML R61 Class 0.5 (Legal-for-trade)
ISO 21898:2020 (Flexible Intermediate Bulk Containers)
CE Machinery Directive 2006/42/EC
ANSI/CEMA Standard 550 (Material Handling)
