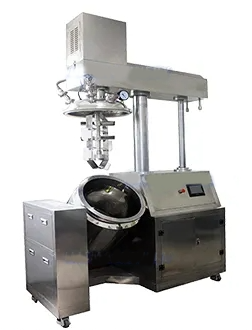

This machine consists of: oil tank, water tank, vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, hydraulic lifting system, operation control cabinet, piping system. It is the most suitable equipment to produce high-grade skin care creams or other creams products.

Oil tank capacity 140L; water tank capacity 210L; primary pot capacity 350L, working volume 300L; limiting vacuum -0.09MPa.

Size: Complete:1100mm × 600mm × 1500mm Oil and water tank: 2000mm×800mm×1700mm

Material: 304 stainless steel. Inner wall, jacket, outer layer all made by 304 stainless steel, inner and outer are polished, the surface handled by special light treatment.

Oil tank and water tank are both double deck, inner wall thickness 4mm, middle and outer thickness 4mm.

Heating system: interlayer electric heating power 6KW, the outer layer covers by asbestos to insulate heat, reducing heat lost and avoiding scalding employees.

Mixing system: both toil tank and water tank assemble disperser of 0.75KW, to make the water and oil heated more quickly and evenly.

Vacuum Emulsifying pot: made of three decks 304 stainless steel. Interlayer thickness 4mm, middle layer thickness 4mm, outer layer thickness 3mm, special light treatment The homogenizer is on the top of the emulsifying pot, adjustable time setting depends on the product homogenization need, voltage 380V, power 4KW, made in Shanghai and uses German technology, the highest speed 2900 r / min. The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements. A lighting hole on the pot cover to observe the states of homogeneity. Entrance for spots of material provide possibility to add essence and suchlike materials. Either pour-out the material by tilting the pot or from the bottom, the latter way can make the materials enter the filling machine directly for quantitative filling. Easy to clean.

Vacuum system: voltage 380V, power 1.5KW, materials in water tank and oil tank are absorbed into the primary pot in vacuum. The rotary-vanepump is made by Haibo Kang Company in Shanghai, which can remove the air bubble to improve the homogenizing effect.(circulating cooling by water)
