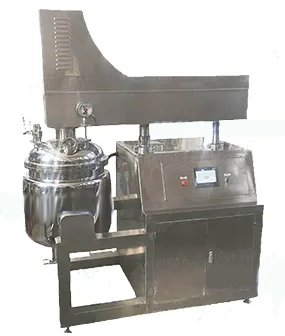

This machine consists of: oil tank, water tank, vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet, piping system. It is the most suitable equipment to produce high-grade skin care creams or other creams products.

Oil tank capacity 130L; water tank capacity 130L; primary pot capacity 250L, working volume 200L; limiting vacuum -0.09MPa.

Size: Complete machine: 2600mm×1900mm×2500-3500mm Oil and water tank: 1800mm×800mm×1200mm

Material: 304 stainless steel. Inner wall, jacket, outer layer all made by 304 stainless steel, inner and outer are polished, the surface handled by special light treatment.

Oil tank and water tank are both double deck, inner wall thickness 4mm, middle and outer thickness 4mm.

Heating system: interlayer electric heating power 6KW, the outer layer covers by asbestos to insulate heat, reducing heat lost and avoiding scalding employees.

Mixing system: both toil tank and water tank assemble disperser of 0.75KW, to make the water and oil heated more quickly and evenly.

Vacuum Emulsifying pot: made of three decks 304 stainless steel. Interlayer thickness 4mm, middle layer thickness 4mm, outer layer thickness 3mm, special light treatment The homogenizer is on the top of the emulsifying pot, adjustable time setting depends on the product homogenization need, voltage 380V, power 4KW, made in Shanghai and uses German technology, the highest speed 2800 r / min. The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements. A lighting hole on the pot cover to observe the states of homogeneity. Entrance for spots of material provide possibility to add essence and suchlike materials. Either pour-out the material by tilting the pot or from the bottom, the latter way can make the materials enter the filling machine directly for quantitative filling. Easy to clean.

Vacuum system: voltage 380V, power 1.1KW, materials in water tank and oil tank are absorbed into the primary pot in vacuum. The rotary-vanepump is made by Haibo Kang Company in Shanghai, which can remove the air bubble to improve the homogenizing effect.(circulating cooling by water)

APPLICABLE BARREL TYPE

COMPANY PROFILE

Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.

We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.

Company Certificate

Our office and workshop

Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance

This is a partial

service for us

in China.

Over 30 years of experience, every time we produce in

Shanghai, our friends can visit our factory at any time.

Brand components

We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.

Our service

Complete solution provided

Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.

Duty after death

Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.

Technology group

We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.

Successful collaboration

Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.

packge and delivery

Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose

CONTACT US

Skype: fayfaywang1027

QQ: 429682794

Whatsapp: 008618016442021

E-mail: [email protected]

https://glzon.en.alibaba.com/

cel: +0086 18016442021
