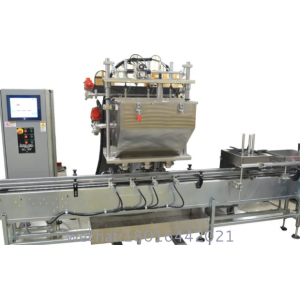

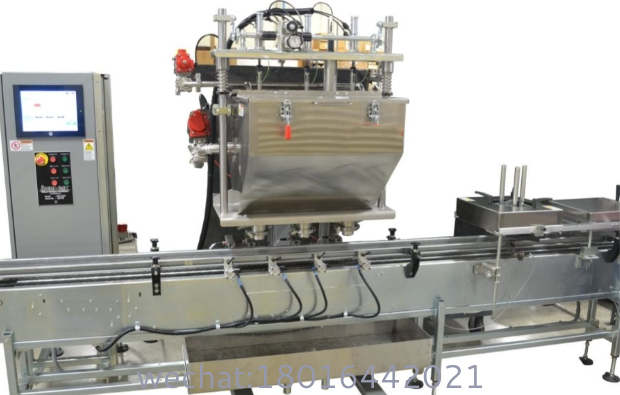

Three Head Automatic Net Weight Liquid Filling Machine delivers the highest levels of automation and precision filling performance in a full-featured package.Automatic PLC-controlled filling, lid plac
3-Head Net Weight Filling & Sealing System with DFS SmartCart
±0.02% Accuracy ? 100 Containers/Min ? 1/2 Pint to Gallon ? Industry 4.0 AI Integration
| Parameter | TF-1010 (Standard) | TF-1020X (ATEX) | TF-1030P (Pharma) |
|---|---|---|---|
| Capacity Range | 0.25L-5L (±0.02%) | 0.25L-5L (±0.03%) | 0.25L-5L (±0.025%) |
| Throughput | 100 Containers/Min | 90 Containers/Min | 85 Containers/Min |
| Accuracy | ±0.02% Gravimetric | ±0.03% | ±0.025% |
| Container Types | 1/2 Pint ? Quart ? Gallon<br>Glass/Plastic/Metal | Same + Safety Cans | Same + USP Vials |
| Filling Technology | Triple Coriolis Mass Flow | ATEX Diaphragm Pumps | Peristaltic Pump (FDA) |
| Sealing Method | AI-Guided Crimp Closure | Induction Sealing | Flip-Top + Tamper Band |
| Material Contact | 316L EP (Ra<0.2μm) | Hastelloy C276 | Glass-Lined Path |
| DFS SmartCart | 200L Capacity<br>? Auto-Height Docking<br>? RFID Tracking<br>? Collision Avoidance | Same + ATEX Pressurization | Same + SIP Capability |
| Changeover Time | <45s (Tool-Free) | <50s | <40s |
| Power | 480V/60Hz, 7.5kW | 24VDC Ex ia | 480V/60Hz, 6.8kW |
| Certifications | NTEP Class 0.2 | ATEX Zone 1 | FDA 21 CFR 210/211 |
| Footprint (L×W) | 3.2m×1.6m | 3.5m×1.8m | 3.3m×1.7m |
Metrology Performance:
| Metric | TF-1010 | Industry Standard |
|---|---|---|
| Calibration | NIST-Traceable | Local Standards |
| Drift/Year | <0.003% | 0.05-0.1% |
| Temp Stability | ±0.0003%/°C | ±0.01%/°C |
| Feature | Technology | Performance |
|---|---|---|
| Auto-Docking | LiDAR + Machine Vision | ±0.3mm Positioning |
| Material AI | Consumption Forecasting | 99.8% Stock Accuracy |
| Agile Navigation | SLAM Algorithm (3D Mapping) | 0.1s Path Optimization |
Chemicals & Solvents
| Component | ATEX Solution |
|---|---|
| Pressurized Sealing | Nitrogen Inerting (O?<0.3%) |
| Vapor Recovery | Activated Carbon Filtration |
| Static Control | Ionized Air Curtain (10? ions/cm3) |
Food & Beverage
Hygienic Design:
Preservation Tech:
| System | Function |
|---|---|
| N? Flushing | O?<0.1% Headspace |
| Light Blocking | Amber UV-Filtered Hood |
Pharmaceuticals
| Certification | Feature |
|---|---|
| ISO 13485 | Cleanroom Compatibility |
| USP <797> | Viable Particle Control |
| GDP Compliance | Blockchain Batch Records |
**10" HMI with TriOS?**
AI-Driven Features:
Predictive Sealing:
| Parameter | Action |
|---|---|
| Cap Defect Detection | Force Adjustment |
| Material Crystallization | Path Heating Trigger |
Zero-Downtime System:
| Component | Predictive Alert |
|---|---|
| Pump Wear | Vibration >4.5mm/s |
| Seal Degradation | Friction >8N |
1. Container Infeed → 2. DFS Cart Auto-Docking → 3. Net Weight Taring (±0.005%) → 4. Triple-Head Filling (±0.02%) → 5. Vacuum Nozzle Retract → 6. AI Crimp/Seal (100-1000N) → 7. 100% Vision Inspection → 8. Blockchain Serialization
Cycle Time: 0.6 seconds/container
Precision Engineering:
? Triple-Head Superiority: - 0.001% Resolution Coriolis Meters - Cross-Channel Density Compensation - Air Buoyancy Auto-Correction ? DFS SmartCart Intelligence: | **Feature**| **Performance**| |----------------------|------------------------| | 200L Capacity| 4×50L Totes | | Auto-Height Docking | ±0.3mm (LiDAR Guided) | | Material Tracking | RFID/NFC/QR Code| ? Sealing Perfection: 1. Force-Controlled Crimping (100-1000N) 2. Helium Leak Test Integration 3. Micro-Defect Vision Inspection
| Model | Target Industry | Key Feature |
|---|---|---|
| TF-1010 | Chemicals/Solvents | NTEP Class 0.2 Accuracy |
| TF-1020X | Flammable Liquids | ATEX Zone 1 Pressurized |
| TF-1030P | Pharma/Biotech | USP <797> Compliance |
? NTEP Certificate 20-041 (Class 0.2) ? ATEX 2014/34/EU Zone 1 (TF-1020X) ? FDA 21 CFR 210/211 ? EHEDG EL Class I ? ISO 9001:2015
BASF Chemical Report:
*"After 6 months using TF-1010:
Output: 55 → 100 containers/min (+82%)
Fill Accuracy: ±0.15% → ±0.018%
Material Savings: $280,000/year
ROI: 4.2 months"*
Transformative Efficiency:
? Industry-Leading Speed: - 100 Containers/Minute - 3× Faster Than Single-Head Systems - 99.5% Mechanical Uptime ? SmartCart Revolution: | **Function**| **Value** | |----------------------|----------------------------| | Changeover Time| ↓85% (45s vs 5 min) | | Material Waste | ↓98% (0.02% Residual) | | Labor Efficiency | 1 Operator for Full Line | ? Future-Proof Design: - OPC UA Connectivity - Digital Twin Integration - OTA Firmware Updates

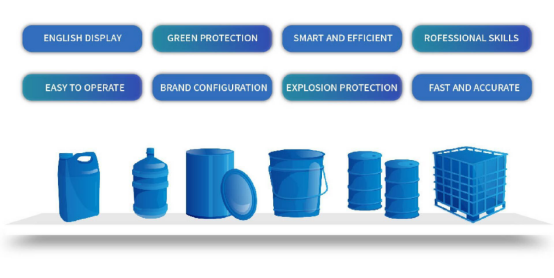

APPLICABLE BARREL TYPE
