Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

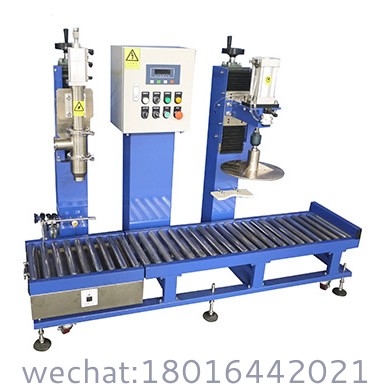

20L Lubricant Filling & Capping System
Integrated Line ? ±0.15% Accuracy ? ATEX Certified ? 25 Drums/Hour
| Parameter | LM-9100 (Standard) | LM-9200X (ATEX) | LM-9300H (High-Visc) |
|---|---|---|---|
| Capacity | 18-22L (±0.15%) | 18-22L (±0.2%) | 18-22L (±0.18%) |
| Throughput | 25 drums/hour | 22 drums/hour | 20 drums/hour |
| Filling Accuracy | ±0.15% gravimetric | ±0.2% | ±0.18% |
| Capping Torque | 5-150 N·m (±3%) | 5-150 N·m (±4%) | 5-150 N·m (±3.5%) |
| Viscosity Range | 10-1,000,000 cP | 50-800,000 cP | 5,000-2,000,000 cP |
| Filling Technology | Mass Flow Coriolis | ATEX Gear Pump | Heated Screw Auger |
| Capping System | Servo Torque Control | Explosion-Proof Spindle | Heavy-Duty Chuck (300mm) |
| Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | Ceramic-Coated Path |
| Splash Control | Submerged Nozzle + Vacuum Cutoff | Same | Coanda Adhesion Design |
| Changeover Time | <5 min (Tool-Free) | <6 min | <5 min |
| Cap Types | Snap Caps, Screw Lids, Bungs | Same + Drum Locks | Tri-Seal Caps |
| Power | 380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 9.2kW |
| Leak Test | 0.5 ml/min Sensitivity | 0.2 ml/min | 0.1 ml/min |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | API 607/682 |
| Technology | Function | Performance |
|---|---|---|
| Submerged Nozzle | Auto-Insertion (50mm depth) | 99.8% Splash Reduction |
| Vacuum Cutoff | -0.7 bar Residual Suction | <0.1ml Residual |
| Coanda Adhesion | Surface-Tension Flow Path | Zero Droplet Formation |
Automotive Lubricants
| Feature | Specification |
|---|---|
| API/ACEA Compliance | Recipe-Controlled Filling |
| Foam Prevention | Vacuum Degassing (-0.8 bar) |
| Additive Dosing | 8-Port System (±0.5%) |
Industrial Gear Oils
High-Viscosity Handling:
| Viscosity | Solution |
|---|---|
| >500,000 cP | Path Heating (80°C) |
| Thixotropic | Pulsed Flow Agitation |
Abrasion Resistance:
| Component | Material |
|---|---|
| Flow Path | Tungsten Carbide Lined |
| Seals | Kalrez?6375 (-20°C to 327°C) |
Food-Grade Lubricants
| Certification | Feature |
|---|---|
| NSF H1 | Dedicated Fluid Path |
| FDA 21 CFR 178.3570 | Electropolished 316L (Ra<0.4μm) |
| 3-A Sanitary | Quick-Release CIP System |
? ATEX 2014/34/EU (LM-9200X) ? FDA 21 CFR 178.3570 ? ISO 9001:2015 ? CE EN 415-7 ? API 682 Seal Plan
