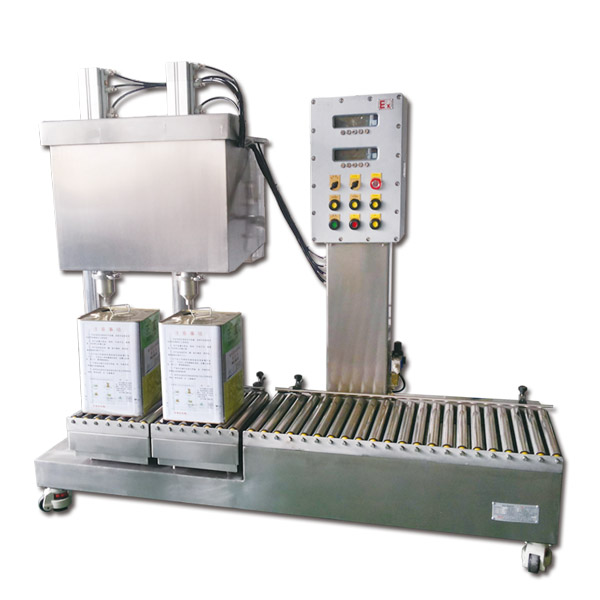

High-precision semi-automatic quantitative filling machine for chemical, food, and pharmaceutical raw materials. Features ±10g accuracy, SUS304/316 construction, and 30-set formula memory. Perfect for 10-30kg packaging. Request a quote!
Chemical industry: Various chemical raw materials, coatings, paints, resins, chemical reagents, etc.
Food industry: Edible oil, syrup, sauce, food additives, liquid food raw materials, etc.
Pharmaceutical industry: Pharmaceutical raw materials, liquid medicines, medical reagents, etc.
Other industries: Various fluid/semi-fluid raw materials that need quantitative filling (10-30kg packaging).
Parameter Item | Specification |
Filling Range | 10-30kg |
Division Value | 0.01kg |
Filling Accuracy | ≤0.1% |
Filling Speed | 200-360 can/h |
Applicable Containers | ≤Ф400xh700mm |
Explosion-proof Rating | ExdiaIIBT4 |
Power Supply | AC220/50Hz |
Air Supply | 0.4-0.8Mpa |
Stable Control System: The system adopts PLC programmable controller, which is safe, reliable and durable, and can adapt to long-term continuous production in harsh industrial environments.
Easy Disassembly and Cleaning: The filling head and pipeline adopt quick connectors, which can be disassembled and cleaned quickly, convenient for daily maintenance and meeting the hygiene requirements of food and pharmaceutical industries.
High-precision Filling: Adopting two-stage automatic filling method, the filling accuracy is ≤0.1%, which effectively reduces material waste and ensures the consistency of product packaging.
Intelligent Nozzle Protection: When the filling head is not inserted into the barrel, it will automatically lift the gun to avoid material splashing; when the target filling value is reached, the filling head will automatically rise to prevent material dripping.
Dual Filling Modes: Two filling modes of net weight/gross weight can be freely selected, which is suitable for different packaging requirements of various raw materials.
Formula Storage Function: It can set and store 30 groups of formulas for call, which saves time for parameter adjustment when replacing products and improves production efficiency.
Adjustable Filling Quantity: The target filling quantity can be set freely, which is convenient for various weight packaging (10-30kg), and has strong versatility.
Simple Operation: One-key filling, easy to operate, and equipped with manual operation mode, which can be manually operated in case of emergency to ensure the smooth progress of production.
Automatic Alarm and Control: It has an automatic alarm function for ultra-difference and an automatic control function for the feeding pump, which can timely find and solve filling problems and protect the safety of equipment and materials.
Intuitive Display: Dual windows can display filling quantity, number of barrels, cumulative quantity and other information, which is clear at a glance and convenient for production statistics.
Intelligent Barrel Detection: It has the function of automatically judging the tare weight range and no-barrel no-filling, avoiding invalid filling and material waste.
Manual container alignment: The operator manually places the empty container on the weighing platform and aligns it with the filling nozzle.
Start the machine: Press the [Start] button on the controller to start the filling process.
Nozzle insertion: The gun head automatically inserts into the barrel to avoid material splashing.
Automatic tare: The machine automatically removes the tare weight of the empty container to ensure the accuracy of the filling quantity.
Dual-speed filling: The machine starts automatic dual-speed filling according to the set target quantity and formula, ensuring both filling speed and accuracy.
Nozzle lift-off: After filling is completed, the filling head automatically lifts to prevent material dripping, and the drip-proof plate catches the liquid to keep the production environment clean.
Error detection: The machine automatically detects the filling quantity and displays the error information (if any) to facilitate timely adjustment.
Manual unloading and capping: The operator manually moves the filled container and completes the capping process.
Pump: Used to transport various raw materials to the filling machine hopper, suitable for large-capacity raw material storage.
Filter: Filter impurities in raw materials to ensure the purity of filled products, especially suitable for food and pharmaceutical industries.
Conveyor: Realize automatic transportation of containers, reduce manual handling, and improve production efficiency.
Return valve: Facilitate the return of excess raw materials, avoid material waste, and protect the pipeline.
Capping Machine: Optional capping equipment to adapt to different capping requirements of various containers.
Automatic filling line: According to the user's on-site layout and production capacity, design a customized automatic filling line to realize full-process automation from feeding, filling, capping to unloading.
Standard type: Suitable for general industrial raw material filling, cost-effective and easy to operate.
Explosion-proof type: Explosion-proof rating ExdiaIIBT4, suitable for filling flammable and explosive raw materials in chemical industry.
Full stainless steel structure type: The whole machine is made of stainless steel, corrosion-resistant and easy to clean, meeting the hygiene requirements of food and pharmaceutical industries.
High Precision & Low Error: Two-stage filling and PLC control ensure filling accuracy ≤0.1%, reducing material waste and unqualified product rate, and meeting the strict requirements of food and pharmaceutical industries.
Multi-industry Adaptation: Suitable for quantitative filling of chemical, food, pharmaceutical raw materials, with strong versatility and wide application range.
Easy Operation & Maintenance: One-key operation, quick disassembly and cleaning of filling head, reducing operation and maintenance difficulty and labor cost.
Multi-protection Design: Equipped with intelligent nozzle protection, no-barrel no-filling, ultra-difference alarm and other functions, safe and reliable.
Customizable Services: Provide three optional models, various optional peripherals and customized automatic filling line design to adapt to different on-site production conditions and industry requirements.
