With the pre-configured IBC filling station that has been designed with your requirements in mind, you are able to meet all your demands in a fast and cost-effective manner. The highly flexible "

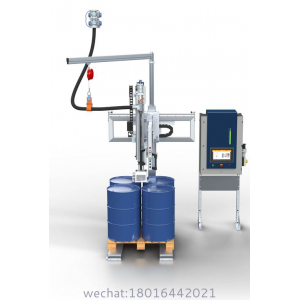

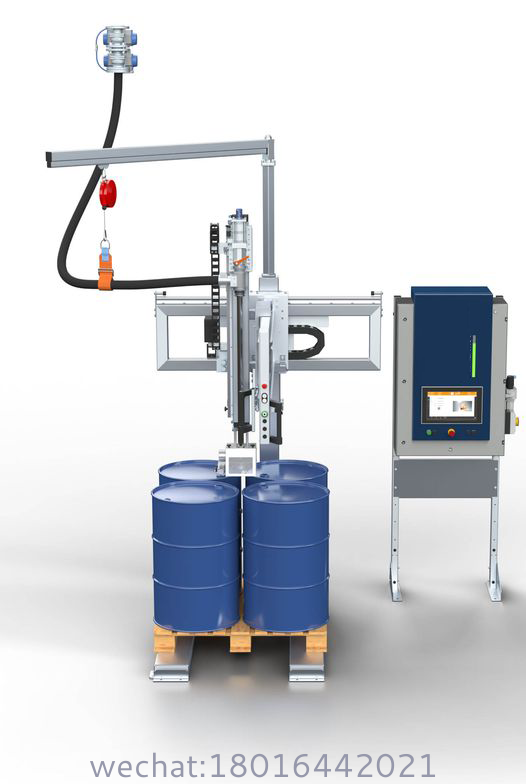

Water-Based Paint IBC Filling Station
Zero Contamination ? Precision Color Control ? Eco-Certified
| Parameter | AF-7100 (Standard) | AF-7200P (Pharma Grade) | AF-7300H (High-Volume) |
|---|---|---|---|
| Capacity | 800-1000L (±0.1%) | 800-1000L (±0.08%) | 800-1000L (±0.15%) |
| Throughput | 20 IBCs/hour | 18 IBCs/hour | 25 IBCs/hour |
| Accuracy | ±0.1% gravimetric | ±0.08% | ±0.15% |
| Viscosity Range | 50-50,000 cP | 50-30,000 cP | 50-100,000 cP |
| Filling Technology | Laminar Flow Mass Meter | Peristaltic Pump (FDA) | Dual Diaphragm Pump |
| Color Consistency | ΔE<0.4 (ISO 2813) | ΔE<0.3 | ΔE<0.5 |
| Material Contact | 316L EP (Ra<0.4μm) | 316L EP (Ra<0.2μm) | Ceramic-Coated 316L |
| Cleanability | CIP 30-min Cycle | SIP/CIP 45-min Cycle | CIP 25-min Cycle |
| Microbial Control | UV-C Light + 0.2μm Vent | 0.1μm HEPA + Ozone | UV-C + Antimicrobial Coating |
| Power | 380V/50Hz, 5.5kW | 380V/50Hz, 4.8kW | 380V/50Hz, 7.2kW |
| Water Consumption | 80L/Cycle (CIP) | 60L/Cycle (PW) | 100L/Cycle |
| Footprint (L×W×H) | 3200×2400×3000mm | 3400×2500×3200mm | 3500×2600×3100mm |
| Certifications | GREENGUARD Gold | FDA cGMP | ISO 14001 |
Color Metrics:
| Paint Type | ΔE Guarantee | Technology |
|---|---|---|
| Matte Interior | <0.4 | Shear Rate Control |
| Semi-Gloss Trim | <0.35 | Laminar Flow Nozzle |
| Metallic Basecoat | <0.5 | Flake Orientation Sensor |
| Layer | Technology | Performance |
|---|---|---|
| Air Barrier | ISO Class 5 Enclosure | <1 CFU/m3 |
| Water Barrier | 0.1μm Absolute Filter | TOC <50 ppb |
| Surface Barrier | Antimicrobial Nano-Coating | 99.99% Bioburden Reduction |
Architectural Coatings
| Feature | Specification |
|---|---|
| Sheen Consistency | Gloss Uniformity ΔGU<1.0 |
| Color Shift Prevention | UV-Filtered Lighting (D65) |
| Splash-Free Filling | Coanda Adhesion Technology |
Automotive Waterborne
VOC Compliance:
Carbon Adsorption (VOC<10g/L)
EPA Method 24 Validation Port
Metallic Control:
| Parameter | Performance |
|---|---|
| Flake Orientation | ±3° Variance Control |
| Color Match | ΔE<0.4 (D65/D50) |
Industrial Wood Coatings
| Component | Certification |
|---|---|
| GREENGUARD Gold | UL 2818 Certified |
| FDA 21 CFR 175.300 | Indirect Food Contact |
| FSC Sustainability | Chain-of-Custody Tracking |
10" HMI with AquaOS?
AI-Driven Features:
Contamination AI:
| Risk | Action |
|---|---|
| Bioburden Spike | Auto Ozone Shock |
| TOC >100 ppb | CIP Initiation |
Resource Optimizer:
| Parameter | Savings |
|---|---|
| Water Usage | ↓45% vs Conventional |
| Energy Consumption | 0.28 kWh/IBC |
? GREENGUARD Gold (UL 2818) ? FDA 21 CFR 175.300 ? ISO 9001/14001 ? EHEDG EL Class I ? EU Ecolabel
PPG Paints Case Study:
*"After 9 months using AF-7100:
Output: 14 → 20 IBCs/hour (+43%)
Color Variance: ΔE 1.2 → 0.32
Water Savings: 1,200L/day → 660L/day
ROI: 7 months"*
1. AGV IBC Loading → 2. Deionized Rinse → 3. Nitrogen Purging (O?<0.5%) → 4. Laminar Flow Filling (±0.1%) → 5. In-line Color Verification → 6. Vapor-Lock Sealing → 7. ATP Surface Test
Cycle Time: 3 min/IBC
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
