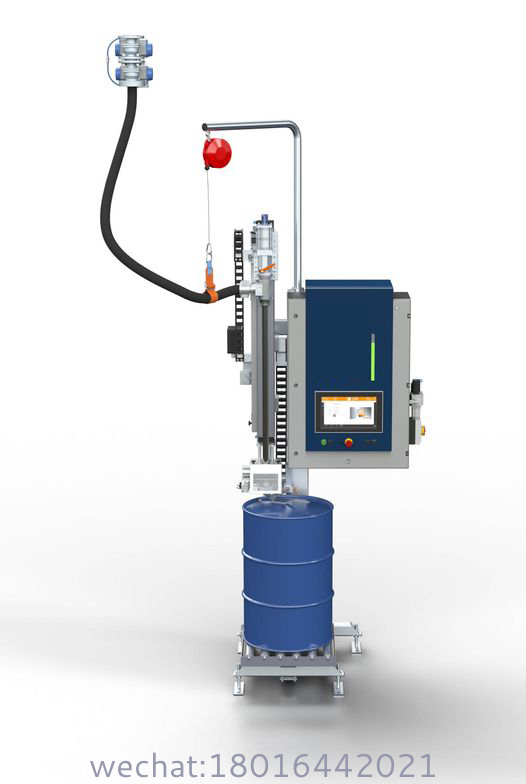

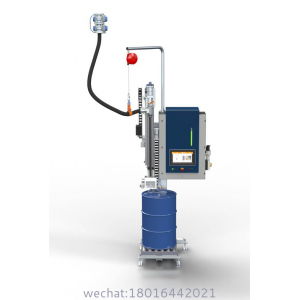

This drum filling machine constitutes the central component of a filling line with comprehensive conveyor system and additional peripherals.All the functions of gravimetric filling equipment with comp
Industrial Paint Drum Filling System
Precision Filling ? Anti-Settling ? Color Consistency Control
| Parameter | PF-3100 (Standard) | PF-3200X (ATEX) | PF-3300F (Food Grade) |
|---|---|---|---|
| Capacity | 180-220L (±0.15%) | 180-220L (±0.2%) | 180-220L (±0.1%) |
| Throughput | 30 drums/hour | 28 drums/hour | 25 drums/hour |
| Accuracy | ±0.15% gravimetric | ±0.2% | ±0.1% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 50-200,000 cP |
| Filling Technology | Dual Coriolis Meters | ATEX Diaphragm Pump | Peristaltic Pump |
| Anti-Settling System | Pulsed Flow Agitation | Ultrasonic Dispersion | Low-Shear Screw Conveyor |
| Skin Prevention | N? Blanketing (O?<0.3%) | Same + O? Scavenger | Temperature Control (±1°C) |
| Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | 316L EP + FDA UHMW-PE |
| Color Change Time | <5 min (CIP) | <6 min | <4 min (SIP) |
| Power | 380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 6.8kW |
| N? Consumption | 40 L/min | 45 L/min | 35 L/min |
| Footprint (L×W×H) | 3200×1800×2500mm | 3500×2000×2700mm | 3300×1900×2600mm |
Color Control Metrics:
| Paint Type | ΔE Guarantee | Technology |
|---|---|---|
| Metallic Automotive | <0.3 (ISO 2813) | Flake Orientation Sensor |
| High-Gloss Industrial | <0.4 | Laminar Flow Nozzle |
| Pastel Architectural | <0.5 | Ultrasonic Homogenization |
| Pigment Type | Solution | Performance |
|---|---|---|
| TiO? (>20%) | 3-Axis Vibration + Pulsed Flow | Uniformity >98% |
| Carbon Black | Static Dissipation Nozzle | No agglomerates (ISO 3262) |
| Iron Oxide | Magnetic Field Stabilization | ΔE<0.3 after 48h settling |
Automotive OEM
| Feature | Specification |
|---|---|
| Color Matching | Pantone?-calibrated recipes |
| Fast Drying Support | IR Path Heating (60°C) |
| VOC Compliance | <340g/L Mode (EPA Method 24) |
Industrial Maintenance Coatings
MIL-PRF-23236C Compliance Kit
Abrasion-Resistant Additive Dosing
Salt Spray Test Validation Port
Architectural Paints
| Parameter | Performance |
|---|---|
| Tinting Accuracy | ±0.5% Additive Dispensing |
| Sheen Consistency | Viscosity Control ±3% |
| Cleanability | 15-min CIP Cycle |
10" HMI with PaintOS?
AI-Driven Features:
Skin Formation Prediction:
| Risk Factor | Preventive Action |
|---|---|
| O? >0.5% for >2min | Auto N? Boost |
| Temp Drop >3°C | Path Preheating Activation |
Maintenance Alerts:
| Component | Replacement Threshold |
|---|---|
| Seals | Compression Set >15% |
| Agitator Blades | Vibration >4.5mm/s RMS |
? ATEX 2014/34/EU (PF-3200X) ? FDA 21 CFR 175.300 ? ISO 4618 Color Standards ? CE EN 60204-1
PPG Coatings Plant Report:
*"After 12 months using PF-3100:
Output: 18 → 30 drums/hour (+67%)
Settling Waste: 3.2% → 0.08%
Color Variance: ΔE 1.2 → 0.35
ROI: 5 months"*
1. AGV Drum Loading → 2. N? Purging (O?<0.3%) → 3. Viscosity Scan → 4. Precision Filling (±0.15%) → 5. Ultrasonic Homogenization → 6. Lid Sealing → 7. VOC Capture
Cycle Time: 2 minutes/drum
APPLICABLE BARREL TYPE
