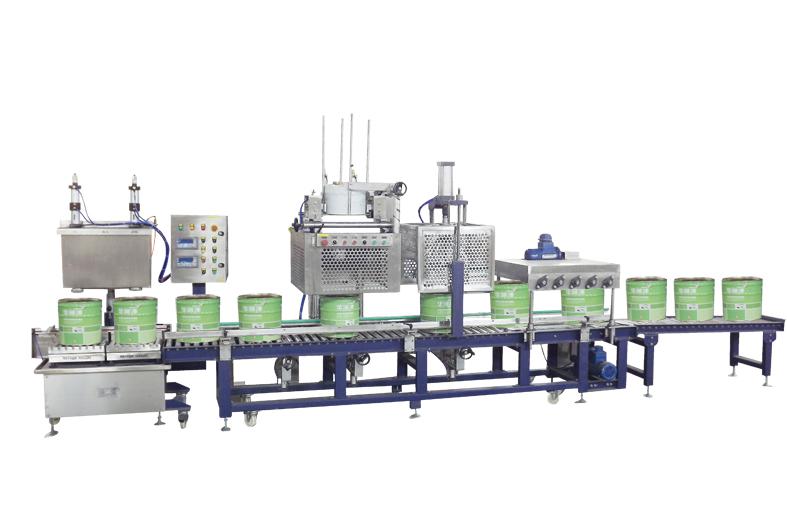

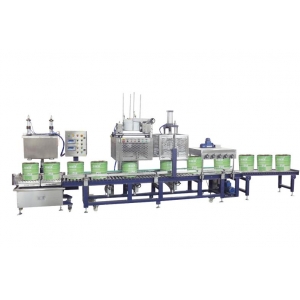

printing ink Filling machine
printing ink Filling machineBasic parametersMaximum weighing capacity: 40kg;Display division value: 10g;Filling error: ± 10g;Filling speed: approximately 500-700 barrels per hour/(25 liters depending
- Brand：
- Model：
Product Overview
The SGFM-PI-AutoFill Pro is a state-of-the-art automatic filling machine engineered specifically for the demanding requirements of the printing ink industry. Designed to handle viscosities ranging from thin solvents to high-paste inks, this machine ensures precision filling, minimal waste, and consistent batch quality. Featuring advanced servo-driven mechanisms, touch-screen PLC controls, and corrosion-resistant materials, it streamlines production for tins, cans, buckets, and bottles from 100ml to 20L. Ideal for manufacturers prioritizing accuracy, hygiene, and throughput, the AutoFill Pro reduces operational costs while enhancing product integrity.
Key Features & Benefits
High-Precision Filling
±0.5% filling accuracy via mass flow meters or servo piston fillers.
Adjustable for weight/volume filling with automatic viscosity compensation.
Versatile Material Handling
Compatible with oil-based, water-based, UV, and solvent inks.
All fluid-contact parts use 316L stainless steel or PTFE.
Automated Efficiency
Integrated conveyor with automatic container positioning.
Capable of 15–30 containers/minute (varies by size/viscosity).
User-Friendly Operation
10.1" HMI touchscreen with recipe memory (up to 50 formulas).
Self-diagnostic alerts and production data logging.
Hygienic & Safe Design
CIP (Clean-in-Place) system compatible.
Explosion-proof (ATEX Option) and drip-free nozzles.
Technical Specifications (Standard Model)
| Parameter | Specification |
|---|---|
| Filling Range | 100ml – 20L (0.1–20 kg) |
| Filling Accuracy | ±0.5% of set value |
| Speed | 10–30 containers/min (size-dependent) |
| Viscosity Handling | 50 cP – 250,000 cP |
| Filling Method | Servo Piston / Mass Flow Meter (Optional) |
| Power Supply | 380V/220V, 50/60Hz, 3-phase |
| Air Pressure | 0.6–0.8 MPa (6–8 bar) |
| Machine Material | Frame: 304 SS; Contact Parts: 316L SS/PTFE |
| Control System | PLC + 10.1" HMI (Recipe Storage) |
| Compliance | CE, ISO 9001; ATEX/GMP Optional |
| Dimensions (L×W×H) | 2500 × 1200 × 1800 mm |
Applications
Container Types: Tins, plastic jars, metal cans, buckets (round/rectangular).
Ink Varieties: Offset, flexographic, gravure, screen, UV-curable, metallic.
Production Scale: Small-batch customization to high-volume OEM lines.
Why Choose SGFM-PI-AutoFill Pro?
Reduced Waste: Precision filling saves up to 4.5% material per batch.
Quick Changeover: Modular tooling adjusts in <15 mins.
Global Support: 24/7 remote diagnostics + spare parts network.
Customizable: Tailored for filling heads, capping, labeling, or nitrogen flushing.
Customization Options
Explosion-proof (ATEX) for solvent-based inks.
Multi-head filling (2–8 heads) for parallel throughput.
In-line weight checkers & reject systems.
CIP/SIP integration for sterile environments.
APPLICABLE BARREL TYPE
