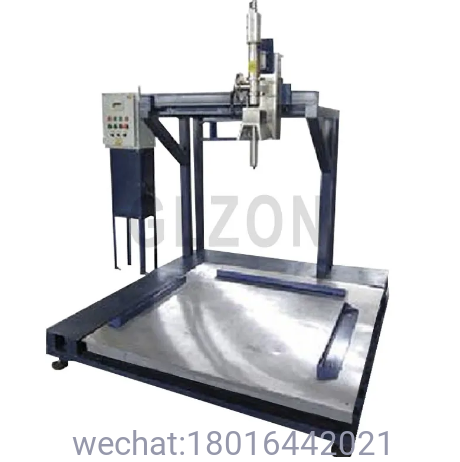

Semi-Auto Pallet Filling Machine for Filling 1000L Chemical Resin/Liquid and Paste Product
Features
The liquid filling machine is a semi-automatic, rotating spray valve liquid filling machine (the most horizontal one
The maximum movable volume is 600mm). This machine adopts filling on or under the liquid surface, which can meet a variety of needs.
Liquid automatic filling needs. The uniquely designed spray valve is easy to operate and the filling is fast and accurate.
And it minimizes the dripping of residual liquid when the filling is completed. Suitable for safe environments and can
Filling of barrels and containers of various sizes.

How to operate

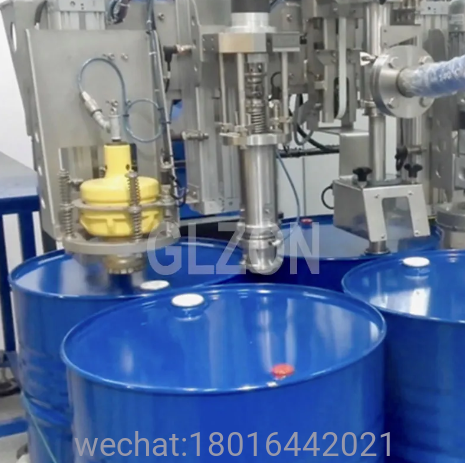

During operation, as long as the empty barrel is installed on the empty barrel pipeline line, it will automatically stop and the
The nozzle device automatically places the empty barrel directly below the nozzle of the nozzle; the nozzle valve automatically lowers into the
After entering the barrel mouth, the empty barrel is automatically tared, and then the specific gravity is determined accurately at two speeds.
bundle, the spray valve automatically connects to the outside of the barrel, enters the full barrel pipeline, and reaches the capping position.
The piping machine stops, the cap is placed manually, the capping machine is pulled down to cap, and the weight is completed.

Touch screen PLC control
Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy

-
