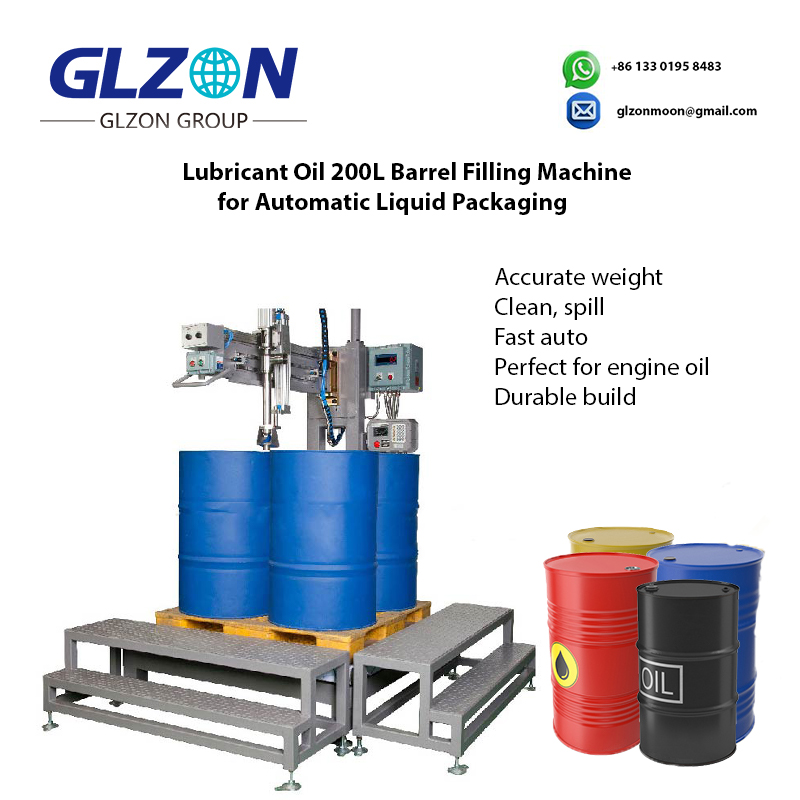

The Automatic Engine Oil Drum and IBC Tote Filling Machine is a specialized solution designed for the precise, efficient, and safe filling of lubricants, engine oils, gear oils, and other viscous liquids into drums (20-200L) and IBC totes (1,000L). Below is a detailed overview of its features, applications, benefits, and technical specifications.

Key Features:

1. Versatile Filling Capacity:

• Designed for filling drums (20L to 200L) and IBC totes (1,000L).

• Suitable for both small and large batch operations.

2. High Accuracy:

• Volumetric or Weight-Based Filling: Ensures precise fill volumes with ±0.5% accuracy (weight-based option available for ±0.2%).

• Anti-foam design minimizes air entrapment and foaming during filling.

3. Automatic Operation:

• Fully automated process with minimal manual intervention.

• Touchscreen HMI (Human-Machine Interface) for easy programming and monitoring.

4. Viscous Liquid Handling:

• High-flow pumps and pneumatic controls handle viscous liquids like engine oil, gear oil, and grease.

• Optional heating jackets for products with high viscosity at room temperature.

5. Safety and Containment:

• Drip-Free Valves: Prevent spills and cross-contamination.

• Vapor Extraction Ports: Reduce fumes and ensure a safe working environment.

• Static Grounding System: Prevents static buildup during filling.

6. Stainless Steel Construction:

• 304/316L stainless steel ensures corrosion resistance and product compatibility.

• PTFE seals and food-grade materials for hygiene and safety.

7. Modular Design:

• Easily integrates with larger production lines (e.g., capping machines, labelers, conveyors).

• Optional upgrades include automatic container handling, nitrogen purging, or data logging.

8. User-Friendly Interface:

• PLC control with touchscreen HMI for intuitive operation.

• Multi-language support for international use.

9. Environmental Protection:

• Spill trays and drip pans collect any accidental leaks.

• Optional containment systems for hazardous or flammable liquids.

Applications:

• Automotive Industry: Engine oils, transmission fluids, and hydraulic oils.

• Industrial Lubricants: Gear oils, cutting oils, and industrial lubricants.

• Chemicals: Solvents, adhesives, and specialty fluids.

• Food and Pharmaceuticals: Edible oils, syrups, and non-hazardous formulations (optional food-grade configuration).

Benefits:

1. Efficiency:

• Automated filling reduces labor costs and production time.

• Simultaneous filling of multiple containers (if multi-head configuration) increases throughput.

2. Precision:

• High-accuracy filling minimizes product giveaway and ensures consistent quality.

• Weight-based options eliminate variability in viscous liquid measurements.

3. Safety:

• Drip-free valves, vapor extraction, and static grounding prevent spills and hazards.

• Stainless steel construction ensures compatibility with aggressive chemicals.

4. Flexibility:

• Adjustable nozzles and fill heads accommodate various container sizes (20L to 1,000L).

• Quick changeover between drums and IBC totes with minimal downtime.

5. Cost-Effective:

• Reduces labor costs compared to manual filling while offering better accuracy than semi-automatic systems.

• Low maintenance and durable construction minimize long-term operating costs.

6. Scalability:

• Easily integrated into larger production lines with optional modules (e.g., capping, labeling, conveying).

• Scalable for future expansion as production demands grow.

Technical Specifications (Example):

• Filling Heads: Single or multi-head configuration (customizable).

• Filling Capacity: Up to 60 drums per hour or 10 IBC totes per hour (depending on product viscosity).

• Filling Accuracy: ±0.5% (volumetric) or ±0.2% (weight-based, optional).

• Materials: 304/316L stainless steel with optional PTFE seals.

• Power Source: Electric (220V/50Hz or 110V/60Hz) with optional pneumatic assistance.

• Control System: PLC with touch screen HMI (Siemens, Omron, or similar).

• Dimensions: Compact footprint (e.g., 1200mm x 800mm x 2000mm).

• Weight: ~350 kg (depending on configuration).

• Container Compatibility: Drums (20L to 200L), IBC totes (1,000L).

Optional Add-Ons:

1. Conveyor System: Automated transport of drums and IBC totes for continuous operation.

2. Capping Machine: Integrated for screw caps, crown caps, or snap caps.

3. Labeling Machine: Automatic application of front/back labels or wraparound labels.

4. Nitrogen Dosing: For preserving product freshness by purging oxygen from containers.

5. Heating Jackets: For maintaining or increasing product temperature during filling.

6. Data Logging: USB or Ethernet connectivity for recording fill data and integration with MES/ERP systems.

7. RFID/Barcode Scanners: For automatic container recognition and tracking.

Conclusion:

The Automatic Engine Oil Drum and IBC Tote Filling Machine is a reliable, precise, and efficient solution for filling viscous liquids like engine oil, lubricants, and industrial oils. With its advanced features, user-friendly interface, and scalable design, it offers a perfect balance of automation and control. Whether you’re filling drums or IBC totes, this machine ensures consistent quality, reduces labor costs, and meets safety and environmental standards.
