Fully-Auto Liquid Filling Machine for Filling 200-1000L Crystal Primer/Waterproof Glue
Packaging & Delivery
Product Description
10L 30L 50L
200L 1000L 1000L| Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids |
| Filling range(L) | 100-1000L |
| power supply | AC220V 50/60Hz |
| Air pressure (Mpa) | 0.6-0.8MPA |
| Filling accuracy (%) | ±0.2% |
| Speed(can/hour) | 30-50 barrels(Depending on the material flow rate) |
| Material | sus304/sus316/carbon steel/PTFE |
| ? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable. |
| ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash |
| ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean. |
| ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications. |
| ? Good stability, reduce losses, save costs, improve operating efficiency, and reduce manual operation pressure. |

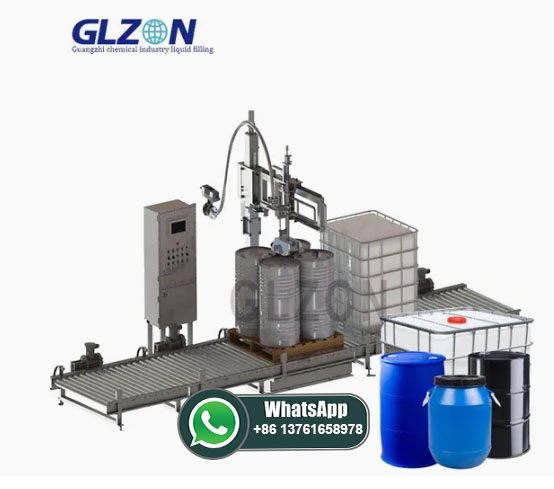

Fully automatic IBC barrel filling line for 1000L IBC barrel filling.
Container loading, manual assisted opening and closing of the lid and other filling operations. The barrel supply, positioning, filling, weighing and metering are all automated.
During operation, as long as the empty barrel is loaded onto the empty barrel pipeline, the pipeline will automatically stop, and the nozzle device will automatically place the empty barrel directly under the nozzle;
The nozzle valve automatically descends to the barrel mouth, enters the full barrel pipeline, and the empty barrel is automatically tared, and then the specific gravity is accurately measured at two speeds;
After bundling, the spray valve automatically connects to the outside of the barrel, enters the full barrel pipeline, and reaches the capping position;
The capping machine stops, the cap is manually put on, and the capping machine pulls down to seal the cap, and the weighing is completed.
Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy
Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function
Our company
Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic high-tech enterprise located in Songjiang District, Shanghai. This is Shanghai's large industry and large equipment manufacturing base."High excellence and high compatibility" is the manufacturing guideline of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company has passed the IS09001 international quality system certification and IS014001 environmental management system certification. The mechanical equipment is gradually passing the "CE certification". Shanghai Guangzhi Specializing in the production of packaging machinery, customers are welcome to negotiate.
Component brand
Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
-
