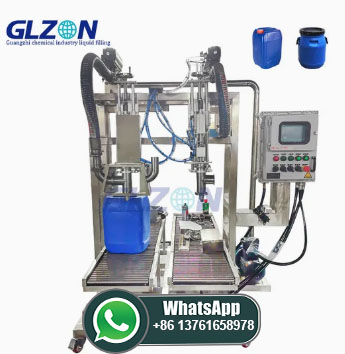

Double-Head Auto Ex-Proof 18L Asphalt Can Filling Machine

Basic Info.
Product Description

| Model | GZM-30AUTO-2PT |
| Suitable material | Liquid like coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc |
| Weighing form | Filling above level (liquid without foam) Filling under level (liquid with foam) |
| filling station | 2 |
| Filling capacity | 10-60KG |
| Accuracy | 0.2% |
| Filling speed | 300-420 barrels/hour |
| Barrel form | Pail, Can, Bottle, Tin, Drum, IBC, etc. |
| Gas power | 0.5MPa |
| Work environment | Temperature :-20oC~45oCrelative humidity:95%(none dew) |
| voltage | AC380/AC220V ± 10% 50Hz |
| Max power | 500W |
| Filling mouth material | SUS304/SUS316/PTFE |
| Option | Explosive proof |




1.For the filling of square barrels and drums below 100kg, thesystem adopts programmable PLC control, with full Chinese quid.ance and easy operation;
2.The filling head extends into the barrel mouth and automaticaly exits when filling is completed. lf the filling head is not alignedwith the barrel mouth, it will automatically return;
3.The filling gun is made with integral technology to preventdripping and splashing; the quick-release connector is easy toisassemble ano cean;
4.The system target value can be set freely, and the height of thefilling gun is adjustable, suitable for rapid filling of packaging barrels of varlous specifications.
5.Equipped with a large and small ball width group and a dou-ble-stage filling gun, the four-stage filling design of large,medium, small and trace quantities makes filling more accurate,Filling is prohibited without a bucket on the weighing platformand differential pressure zero-time bucket collision protection isprovided:
6.Net weight/gross weight (automatic tare for each barrel) Twofilling methods are automatically selected;
7.One-click operation, easy to use; multiple windows display filling volume, number of barrels, cumulative volume and other in-formation;
8.There is a signal indicator light for real-time display, and an au.tomatic alarm if the deviation is exceeded;
9.It has good stability, reduces losses, saves costs, improves operating efficlency and reduces manual operation pressure.


-
